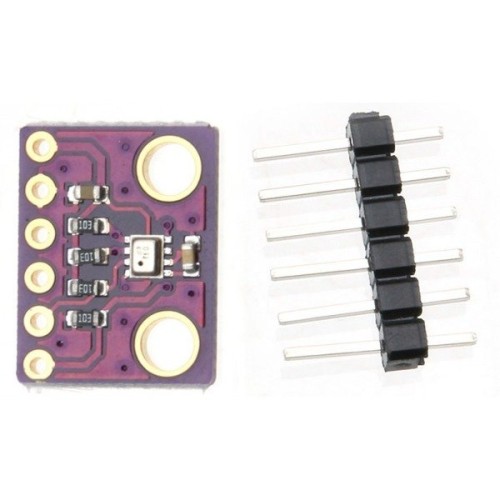

BMP280-3.3V Atmospheric Pressure Sensor

Product Code: ABC-7206
Availability: Vilnius Store In Stock
Kaunas Store In Stock
Central Warehouse Out of Stock
2.90€
Ex Tax: 2.40€

Qty

Module with digital barometer provides pressure measurement in the range from 300 to 1100 hPa with the accuracy of 1 hPa. The sensor operates with voltages from the range of 3.3 V. It can be used directly by the microcontrollers operating at these voltages, for example, STM32Discovery, Arduino Pro Mini of 3.3 V or minicomputer Raspberry Pi. To connect with chips of 5 V, for example, the Arduino Uno, the signals need to be connected via voltage converter.

Specification:

  • Supply voltage: 3.3 V
  • Sensor: BMP280
  • Wide measuring range: from 300 hPa to 1100 hPa
  • Accuracy: 1 hPa
  • Communication interface: I2C or SPI
  • Factory calibrated
  • Built-in thermometer
  • Two mounting holes with diameter of 3 mm
  • Size: 15 x 10 mm
  • Weight: 0.6 g
