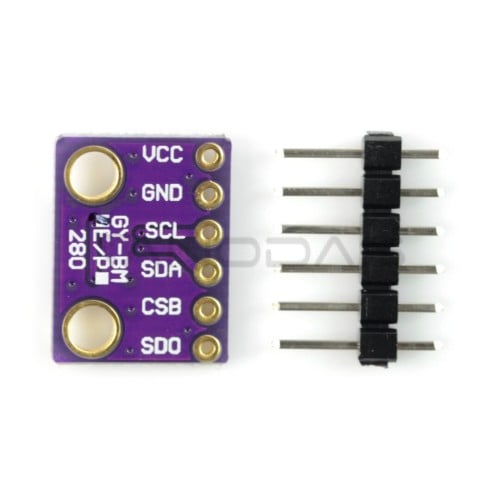

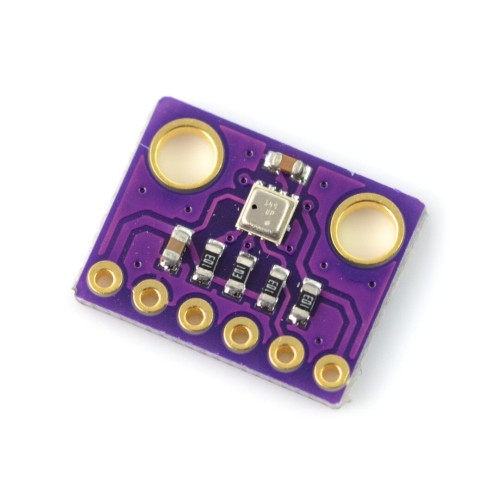

BME280 - humidity, temperature and pressure sensor 110kPa I2C/SPI - 3.3V

Brand: OEM
Product Code: AN-11803
Availability: 4-6 business days
Planned delivery date after ordering: 2025-03-25
10.60€
Ex Tax: 8.76€

Qty

Humidity, temperature and pressure sensor powered with the voltage of 3.3 V with I2C and SPI interface. Measuring range: temperature: -40 °C to 85 °C, humidity: 10% RH to 100% RH, pressure: from 300 hPa to 1100 hPa.

Specification:

  • Supply voltage: 3.3 V
  • Module dimensions: 15 x 10 mm
  • Two mounting holes with a diameter of 3 mm
  • Temperature
    • Measurement range: -40 to 85 °C
    • Accuracy: ± 1 °C
  • Humidity:
    • Measuring range: 10 to 100% RH
    • Accuracy: ± 3% RH
  • Pressure
    • Measuring range: 300 to 1100 hPa
    • Accuracy: ± 1 hPa
