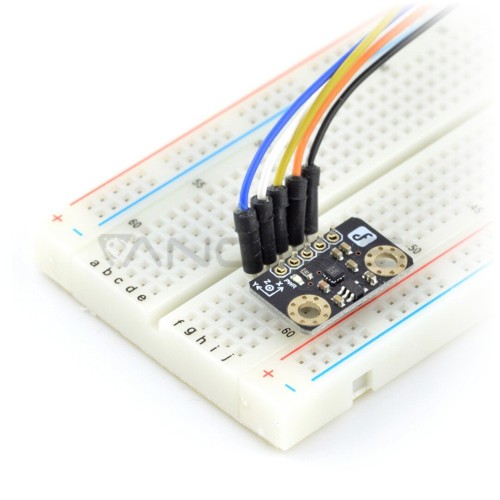

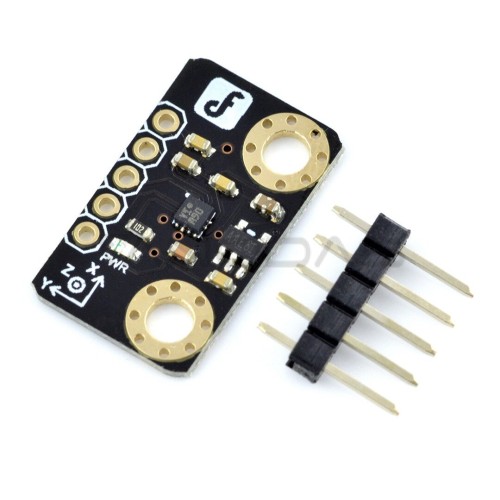

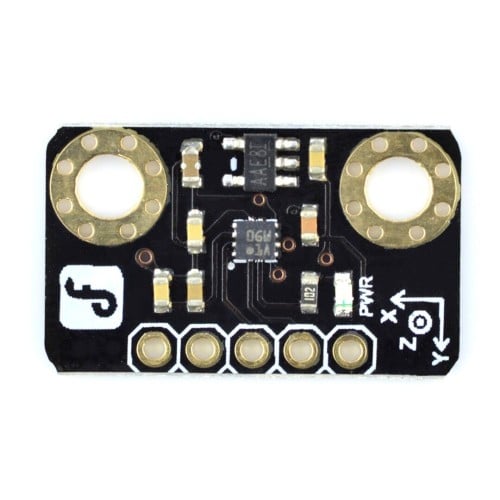

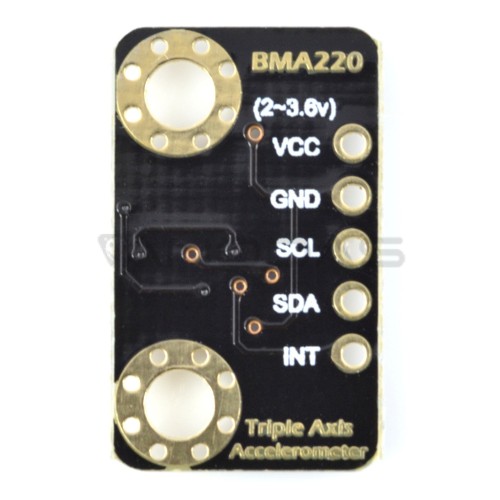

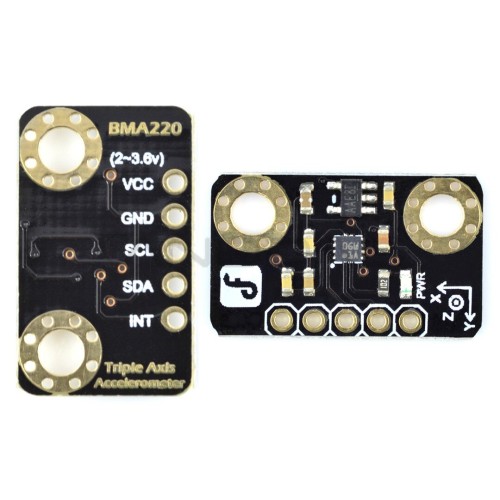

BMA220 3-axis I2C digital accelerator - DFRobot module

This Triple Axis Accelerometer with Bosch BMA220 is an ultra small triaxial, low-g acceleration sensor breakboard with SPI and I2C interface, aiming for low power consumer market applications. It allows measurement of accelerations in 3 perpendicular axes and thus senses tilt, motion, shock and vibration in cell phones, handhelds, computer peripherals, man-machine interfaces, virtual reality features and game controllers.
With a size of only 2 x 2 mm, the Bosch BMA220 represents a new generation of acceleration sensors. The Tri-Axis Accelerometer integrates a multitude of features that facilitates its use especially in the area of motion detection applications, such as device orientation detection, gaming, HMI and menu browser control.

Specification:

• Supply voltage: 2.0 V - 3.6 V
• The voltage of pins: 1.6 V to 3.6 V
• Low current consumption: up to 250 µA (up to 10 µA in standby mode)
• Three axes: X, Y, Z
• Communication interface: I2C (TWI)
• Does not contain pull-up resistors - pulling up the line of the I2C bus
• Measuring range (configurable): ±2 g, ±4 g, ±8 g, ±16 g
• Programmable interrupt
• Pins: strap goldpin pitch of 2.54 - kit for self-soldering
• Two mounting holes with the diameter of 3 mm
• Board sizes: 22 x 13 mm


Documents:
Website of the manufacturer
Manual
