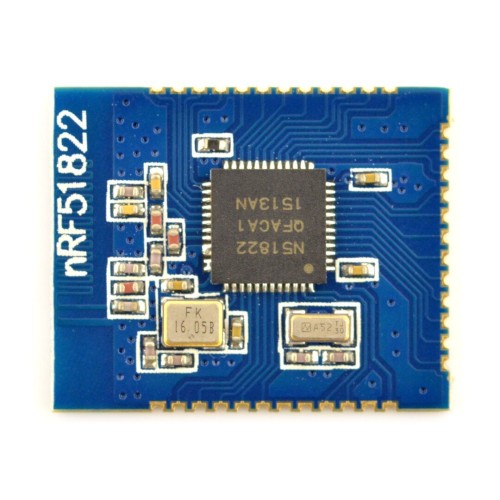

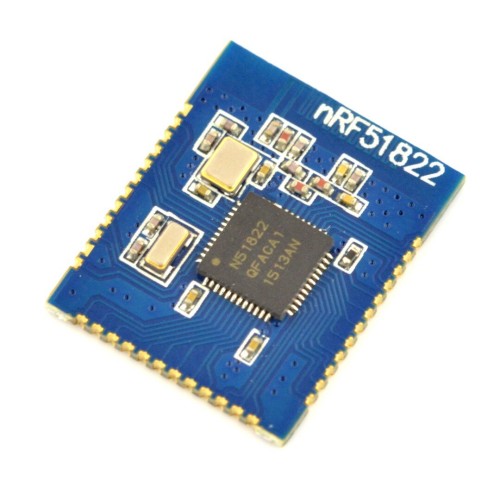

Bluetooth Low Energy module (BLE 4.0), NRF51822, mini version, Waveshare 10649

The communication module is working in the Bluetooth BLE 4.0 standard at a distance of up to 30 meters. Unlike classic BT, BLE has no legal restrictions, iOS apps can be freely designed and shared. This is a mini version 21 x 17 mm with an internal antenna.

Specification:

• Driver: nRF51822 based on ARM Cortex-M0 32 bit
• Working frequency: 2.4 GHz
• Supply voltage: 2.0 to 3.6 V
• Range: 30 m
• Flash memory: 256 KB
• RAM: 32 KB
• Interfaces: SPI, I2C. UART
• Built-in ADC 10-bit
• The possibility to set the power: -20 dBm to 4 dBm
• Built-in PCB antenna

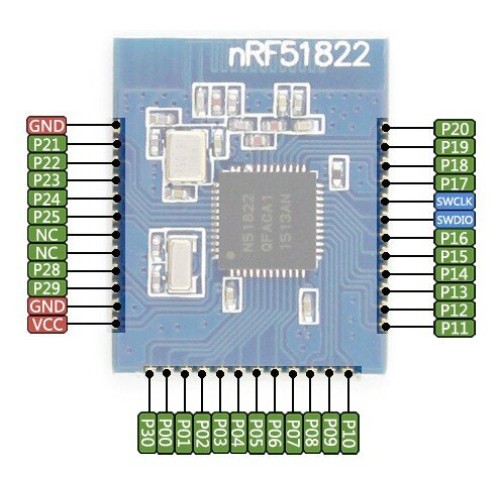

• Pin's pitch: 1 mm
• Board sizes: 21 x 17 mm
