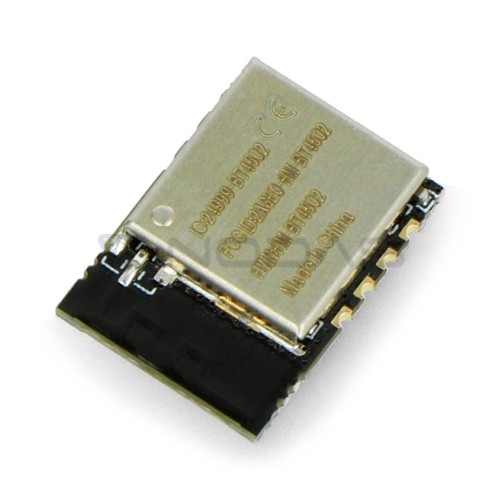

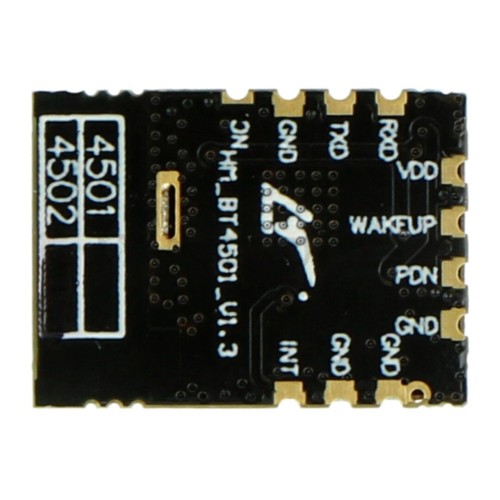

Bluetooth BLE module HM-BT4502, Seeedstudio 11399081

Bluetooth BLE communication module in standard 5.0, based on HM-BT4502 chip. When connected to a microcontroller, it is able to communicate and send data to devices such as smartphones and tablets. It communicates through the UART interface, supports AT commands. Supports command to reset the software and obtain the MAC address. Moreover, with AT commands you can set the connection interval and baud rate. It is powered from 1.8 V to 3.6 V.

Main features:

• Controlled via serial interface, full-duplex bidirectional communication, the minimum speed is 9600 b/s
• The default connection interval is 30 ms
• Supports 2M transmission symbol and 244 bytes packets
• Supports AT commands for basic settings


Specification:

• Operating voltage: 1.8 V to 3.6 V
• Operating temperature: -40 °C to 125 °C
• Modulation mode: GFSK (Gaussian Frequency Shift Keying)
• Modulation frequency: 2402 MHz to 2480 MHz
• Current consumption during data reception: less than 8 mA / 3 V
• Power consumption during data transmission: below 4 uA / 3 V
• Tx power: from -20 dBm to 8 dBm
• Sensitivity Rx: -97 dBm
• Dimensions: 17 x 12 mm
