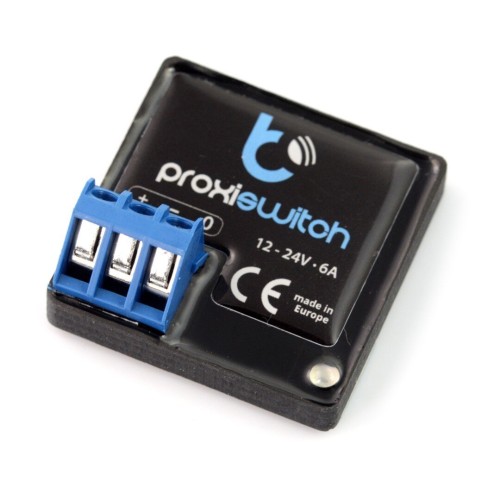

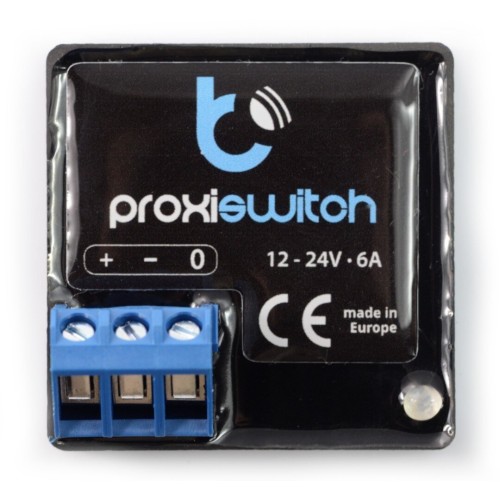

BleBox ProxiSwitch - proximity switch 12-24V

Brand: BleBox
Product Code: AN-13725
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
21.60€
Ex Tax: 17.85€

Qty

The complete module allows you to turn the device on and off by touch or by the gesture. It works with voltage from 12 V to 24 V and current efficiency up to 5 A. It has reverse-polarity-protection. The device is calibrated automatically, you just need to correctly connect the power supply and the controlled device. The module has screw terminal block connectors for connecting wires. There are self-adhesive strips at the back of the device for mounting the module.

Specification:
  • Supply voltage: 12 to 24 V
  • Maximum current: up to 5 A
  • Maximum power: 120 W
  • Working temperature: from -10 °C to 40 °C
  • Protection: reverse-polarity, ESD
  • Sensor: proximity sensor, capacitive sensor
  • Degree of protection: IP20
  • Calibration: automatic
  • Method of installation: under the insulating surface
  • Self-adhesive strips on the reverse side for attaching the module
  • Dimensions: 38 x 38 x 19 mm
