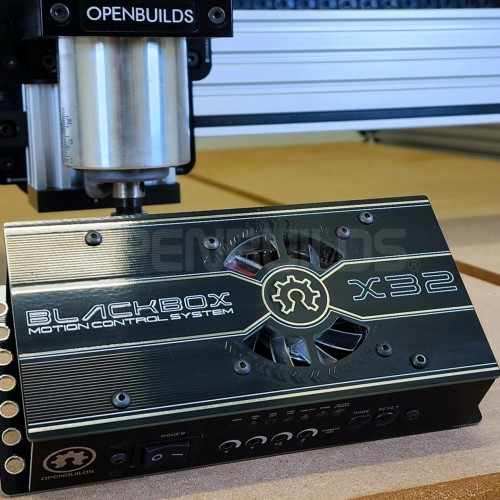

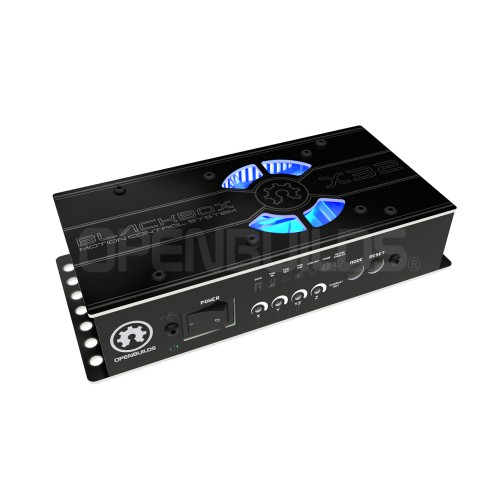

BlackBox Motion Control System X32

Welcome to the future in CNC machine control.  Our all-in-one plug and play OpenBuilds BlackBox Motion Control System is revolutionizing CNC. CNC Routers, Plasma Cutters, Laser Cutters or any other CNC Machine – the BlackBox will handle the job thanks to its multiple connection options. The OpenBuilds Xtension Wiring EcoSystem makes it super easy to connect with any tool head without comprising on security thanks to our multiple limit switches.

Product Specification

Stepper Drivers:

• 4 x High Powered 4.0A (Peak) Stepper Drivers
• Up to 1/32nd Microstepping (Defaulted to 1/8 for higher torque)
• Built in Cooling solution / through airflow design
• Easy current adjustment
• Capable of true 2/3/4 axes motion control
• Rotary
• CoreXY
• Cartesian
• Polar

Outputs:

• Dual configurable onboard Relays for Plasmas, Spindles, etc
• Router (Enable) and VFD Spindle (Direction, Enable, 0-10v) Supported
• PWM Output for Lasers
• Servo Output for Pen Plotters
• Pick and Place solenoid VAC
• Controlled Air Assist
• Up to 24v 5A Switched Output for Coolant or LED devices

Inputs:

• 3x Optocoupled Endstop Inputs with power supply (5/24v). Suitable for passive or active mechanical, optical and inductive switches
• 1x Optocoupled XYZ Probe Input
• Door sensor input

Microcontroller:

• High performance 32 Bit Processor
• USB Interface for Plug and Play
• WIFI Support
• SD Card Support

Connectivity:

• WiFi
• USB
• SD
• Xtension System
• WEB UI

Mechanical:

• Easy V-Slot/C-Beam compatible mounting
• Dimensions: 171mm (Mounting flange included) x 80mm x 36.4mm

Compatibility:

• Supported by OpenBuilds CONTROL software
• Supports OpenBuilds Interface
• Supports GrblHAL Firmware

What is Included:

• BlackBox X32 Fully Assembled
• Xtension Connectors
• Mounting Hardware
• USB Cable
• SD Card

INTERFACE CableSoftware

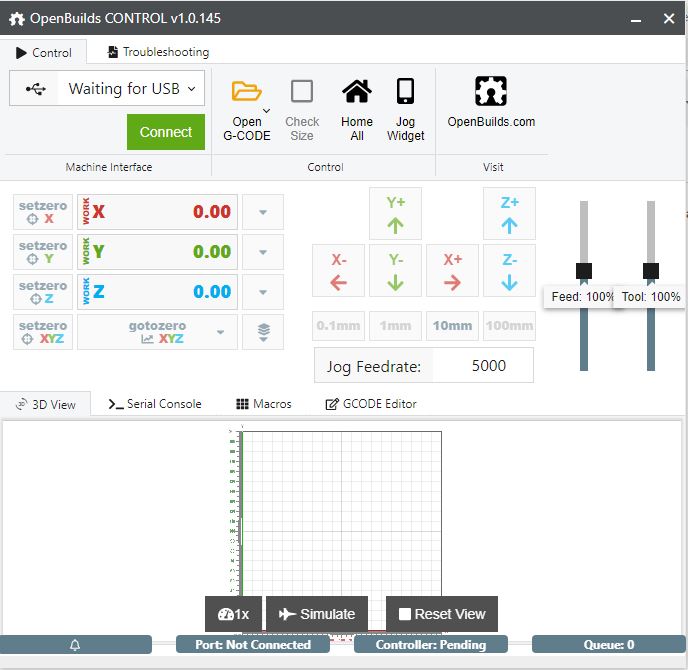

•     OpenBuilds CONTROL for easy setup and configuration - https://software.openbuilds.com/
•
