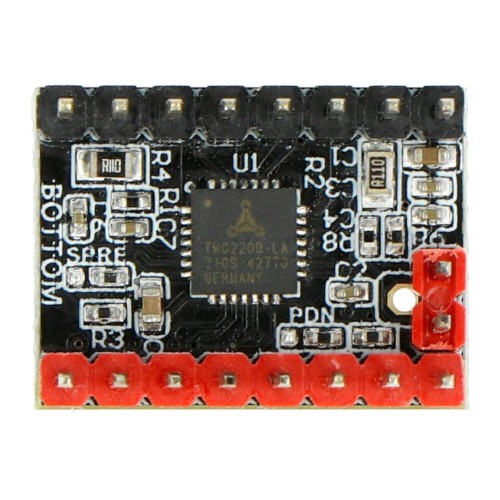

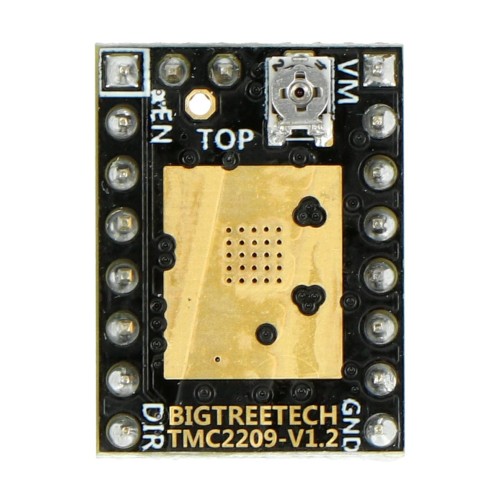

Bigtreetech TMC2209 v1.2 Stepper Motor Driver
Stepper motor driver, whose supply voltage ranges from 4.75 V to 28 V DC. The maximum current consumption per coil is 2 A (RMS). The driver can operate in two modes: step/dir or UART. The Flexible microPlyer interpolation unit can perform up to 256 micro-steps. Bigtreetech TMC2209 V1.2 uses the Stallguard locked motor test. Dynamic Coolstep control provides up to 75% power savings.
Main features:
Main features:
- SpreadCycle support allows for avoiding losing steps and the Jittering phenomenon which occurs during the printer's work. Jittering is the appearance of unevenness on the finished model
- The increased surface area of the heat-dissipation area on the controller prevents overheating
- StealthChop provides quiet operation (approx. 10 dB)
- CoolStep support with power control to save energy (up to 75% less power required)
- Compatible with StallGuard sensorless motor load detection
- Supply voltage: 4.74 V to 28 V DC
- Current consumption per coil (RMS value): 2 A
- Maximum number of micro-steps: 256
- Overall dimensions: 20.32 x 15.24 mm

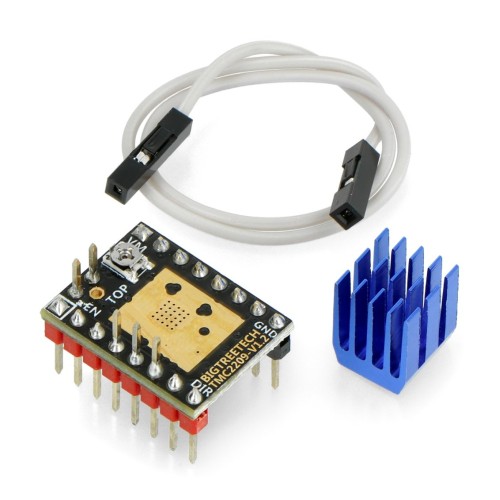

- Bigtreetech TMC2209 v1.2 stepper motor driver
- Additional heat sink
- Connection cable
