BigTreeTech CB1 V2.2 Single board

Brand: BIQU 3D
Product Code: PRM-9464
Availability: 4-7 business days
Planuojama gavimo data po užsakymo: 2025-03-27
45.90€
Ex Tax: 37.93€

Qty

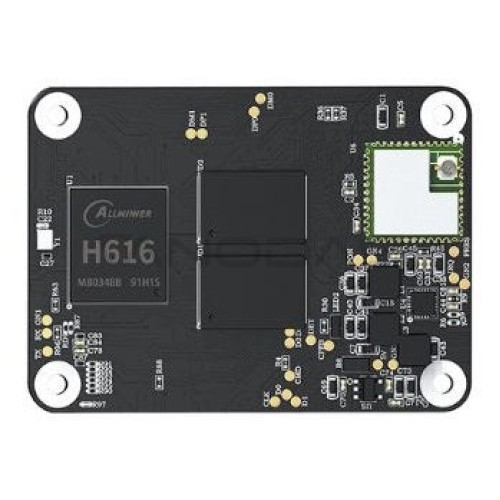

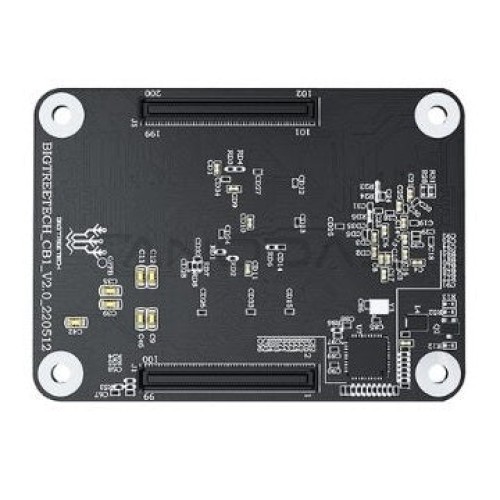

CB1 core board consists of one main control chip (CPU), RAM, WiFi module, several small chips, inductances, capacitances, resistances, and 22 welding spots. It adopts a powerful core processor, All winner H616, Cortex-A53 processor, and Quad-core 64-bit ARM. Carrying 1 GB RAM, which makes it run smoothly. And it also supports a 4 K high-resolution display, helping you improve your printing experience. What's more, 100 M Ethernet and 100 M WiFi are permitted, and conveniently run the Klipper firmware. Usually, it connects to a cooling fin to maintain normal work and is soldered on the mainboard.
The powerful BIGTREETECH CB1 is an I/O board that can be used as an alternative to a Raspberry Pi when used with the Manta mainboards. The powerful board delivers excellent performance thanks to its unique compatibility with Linux and Debian. In combination with the PI4B adapter or the Manta mainboards, there is also compatibility with Klipper firmware: Manta M8P (high compatibility with Voron 2.4 and VzBoT) and Manta M4P (high compatibility with Voron V0 and Ender 3). The space-saving design allows for an uncomplicated installation, which can also be supported with screws.

Main features:

  • Quad-core 64-bit ARM Cortex-A53 with a 1.5 GHz processor and 1 GB DDR3 RAM
  • Supports HDMI 4 K video
  • Supports 100 M Ethernet and 100 M WiFi
  • Compatibility with Linux and Debian
  • Compatible with Klipper in combination with Manta M4P/M8P
  • Compatible with heatsink for efficient heat dissipation

Specification:

  • Product size: 55 x 40 mm
  • Installation size: 48 x 33 mm
  • CPU: Allwinner H616, quad core Cortex-A53
  • GPU: Mali G31 MP2, also supports OPENGL3.2
  • R.A.M.: 1 GB DDR3L SDRAM
  • Screen: supports HDMI2.0A, 4 K display
  • Interface: USB2.0
  • Network connection: 100 M Ethernet + 100 M WiFi
