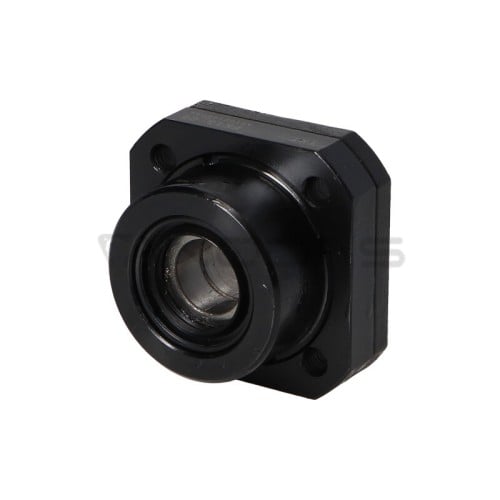

Bearing block FK15 C7 drive side

Brand: Sonyung Industry Co.
Product Code: MX-IW-FK-15
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-15
56.90€
Ex Tax: 47.02€

Qty

Characteristics :

  • The FK15 bearing block is mounted on the drive side of the screw
  • Two angular contact bearings with an internal diameter of 15 mm are used
  • The bearings transfer thrust loads in both directions
  • Sealing rings protect the bearings against dirt
  • Bearings lubricated with high-quality grease
  • The design of the bearing block allows it to be mounted in a vertical position
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA, SYK, HIWIN
  • Accuracy class C7
  • Suitable for bearing ball and trapezoidal screws with diameters from 18mm to 20mm and any pitch
  • Compatible with FF series blocks

Length (L): 32 mm
Diameter (d1): 15 mm
Dimension F: 17 mm
Dimension E: 36 mm
Diameter Tolerance (D tolerance): -0.009-0.025
Height (H): 15 mm
Diameter (Dg6): 40 mm
Dimension A: 63 mm
Pitch Circle Diameter (PCD): 50 mm
Dimension B: 52 mm
Length (L1): 10 mm
Thickness (T1): 6 mm
Length (L2): 12 mm
Thickness (T2): 8 mm
Dimension X: 5.5 mm
Dimension Y: 9.5 mm
Dimension Z: 6 mm
Mounting Screw Size (M): M4
Thickness (T): 22 mm
Bearing: 7002A P0
