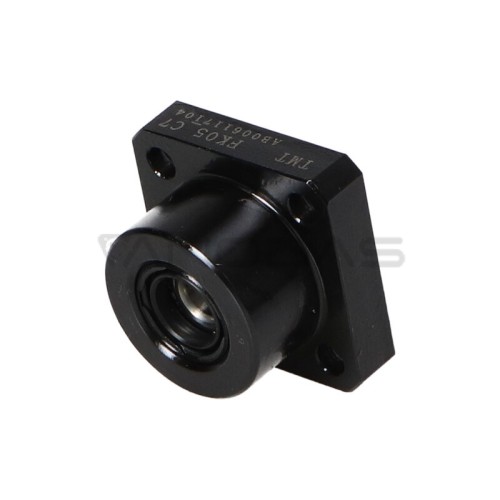

Bearing block FK05 C7 drive side

Brand: Sonyung Industry Co.
Product Code: MX-IW-FK-05
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-01
61.50€
Ex Tax: 50.83€

Qty

Characteristics :

  • The FK05 bearing block is mounted on the drive side of the screw
  • Two angular contact bearings with an internal diameter of 5 mm are used
  • The bearings transfer thrust loads in both directions
  • Sealing rings protect the bearings against dirt
  • Bearings lubricated with high-quality grease
  • The design of the bearing block allows it to be mounted in a vertical position
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA, SYK, HIWIN
  • Accuracy class C7
  • Suitable for bearing ball and trapezoidal screws with diameters from 8 mm and any pitch
  • Compatible with FF series blocks

Length (L): 16.5 mm
Diameter (d1): 5 mm
Dimension F: 10.5 mm
Dimension E: 18.5 mm
Diameter Tolerance (D tolerance): -0.007-0.02
Height (H): 6 mm
Diameter (Dg6): 20 mm
Dimension A: 34 mm
Pitch Circle Diameter (PCD): 26 mm
Dimension B: 26 mm
Length (L1): 5.5 mm
Thickness (T1): 3.5 mm
Length (L2): 7 mm
Thickness (T2): 5 mm
Dimension X: 3.4 mm
Dimension Y: 6.5 mm
Dimension Z: 4 mm
Mounting Screw Size (M): M3
Thickness (T): 11 mm
Bearing: 706A P0
