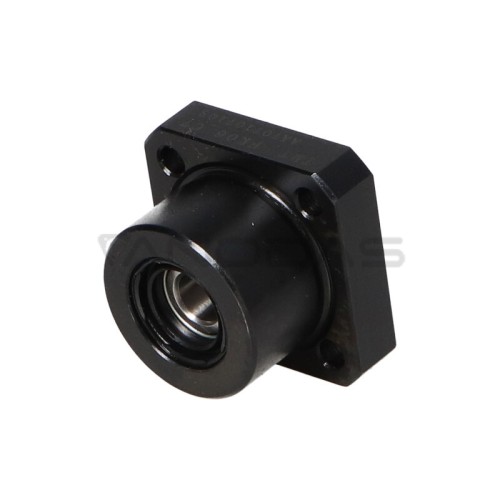

Bearing block FF06 C7 supporting side

Brand: Sonyung Industry Co.
Product Code: MX-IW-FF-06
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-18
26.00€
Ex Tax: 21.49€

Qty

Characteristics :

  • Bearing block FF06 mounted on the side supporting the thread (can only accept radial loads)
  • Floating bearing attached to ball screw. The design allows for thermal expansion of the thread.
  • The design of the bearing block allows for mounting in a vertical and frontal position
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA, SYK, HIWIN
  • Accuracy class C7
  • Suitable for bearing ball and trapezoidal screws with a diameter of 8 mm and any pitch
  • Compatible with FK blocks

Diameter (D): 22 mm
Length (L): 10 mm
Height (H): 6 mm
Diameter (d1): 6 mm
Dimension A: 36 mm
Dimension B: 28 mm
Dimension F: 4 mm
Dimension X: 3.4 mm
Dimension Y: 6.5 mm
Dimension Z: 4 mm
Bearing: 606ZZ
Seger Ring: S 06
Diameter Tolerance (D tolerance): -0.007-0.02
Pitch Circle Diameter (PCD): 28 mm
