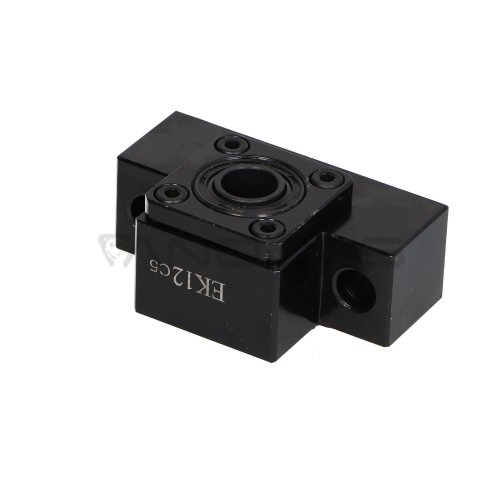

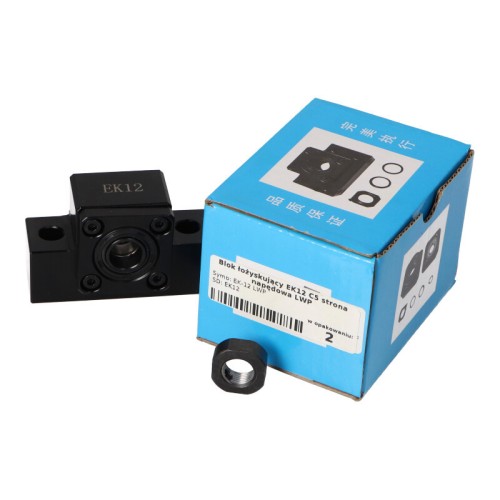

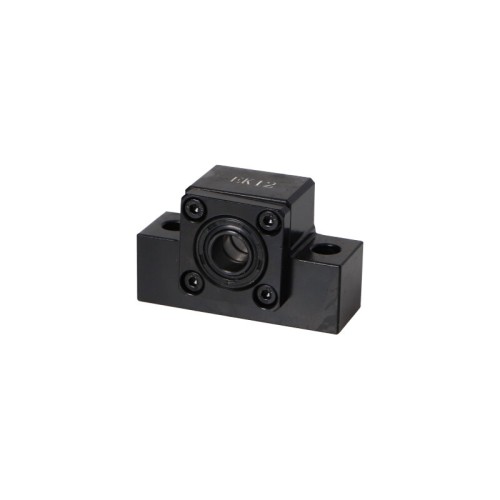

Bearing block EK12 C5 drive side LWP

Brand: Wagney
Product Code: MX-EK-12-LWP
Availability: Temporarily Out Of Stock
28.10€
Ex Tax: 23.22€

Characteristics :

  • The EK12 bearing block is mounted on the drive side of the screw
  • Two angular contact bearings with an internal diameter of 12 mm are used
  • The bearings transfer thrust loads in both directions
  • Sealing rings protect the bearings against dirt
  • Bearings lubricated with high-quality grease
  • The design of the bearing block allows it to be mounted in a vertical position
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA, SYK, HIWIN
  • Accuracy class C5
  • Suitable for bearing ball and trapezoidal screws with diameters from 14mm to 16mm and any pitch
  • Compatible with EF series blocks

Length (L): 24 mm
Height (H): 43 mm
Diameter (d1): 12 mm
Base Width (B1): 36 mm
Height with Base (H1): 24 mm
Total Width (B): 70 mm
Mounting Screw Size (M): M4
Screw Lengths:
L1: 6 mm
L2: 29.5 mm
L3: 6 mm
Pitch (P): 52 mm
Thickness (T): 19 mm
Width Tolerance (B +/- 0.02): 35 mm
Height Tolerance (H +/- 0.02): 25 mm
Dimension X: 9 mm
Bearing: 7000A P0
