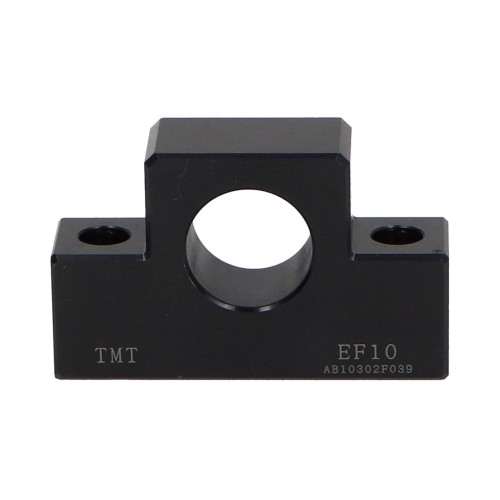

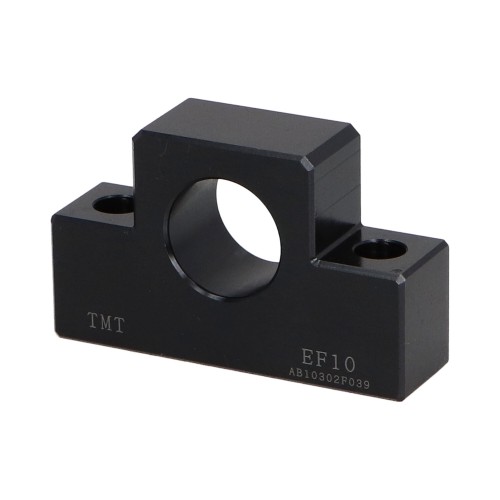

Bearing block EF10 C7 supporting side

Brand: Sonyung Industry Co.
Product Code: MX-IW-EF-10
Availability: 6-11 business days
Planuojama gavimo data po uĹľsakymo: 2025-05-14
36.50€
Ex Tax: 30.17€

Qty

Characteristics :

  • EF10 bearing block mounted on the thread supporting side (can only take radial loads)
  • Floating bearing attached to ball screw. The design allows for thermal expansion of the thread.
  • The design of the bearing block allows for mounting in a vertical and frontal position
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA, SYK, HIWIN
  • Accuracy class C7
  • Suitable for bearing ball and trapezoidal screws with diameters from 12mm to 15mm and any pitch
  • Compatible with EK blocks

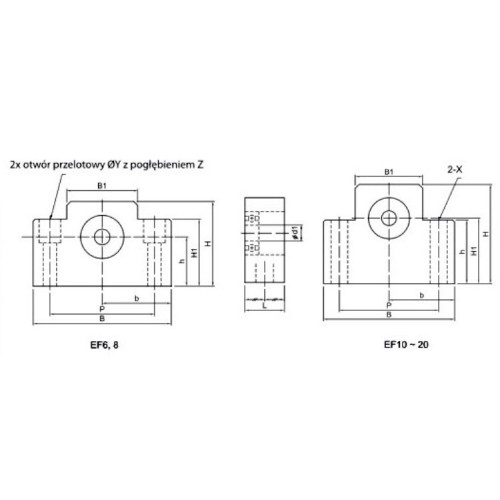

Length (L): 20 mm
Height (H): 43 mm
Diameter (d1): 8 mm
Base Width (B1): 36 mm
Height with Base (H1): 24 mm
Total Width (B): 70 mm
Pitch (P): 52 mm
Width Tolerance (B +/- 0.02): 35 mm
Height Tolerance (H +/- 0.02): 25 mm
Dimension X: 9 mm

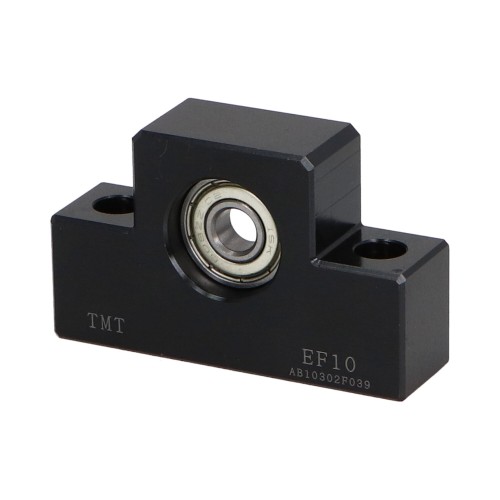

Bearing: 608ZZ
Seger Ring: S08
