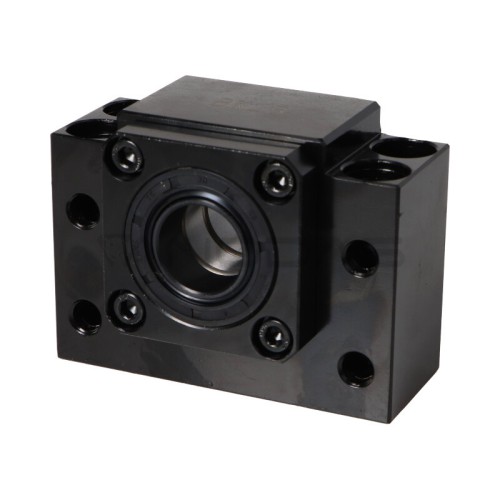

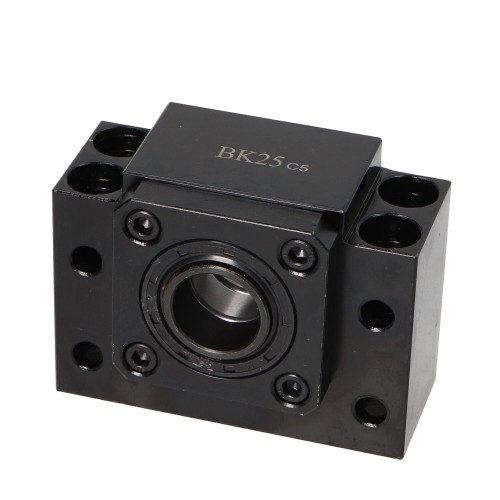

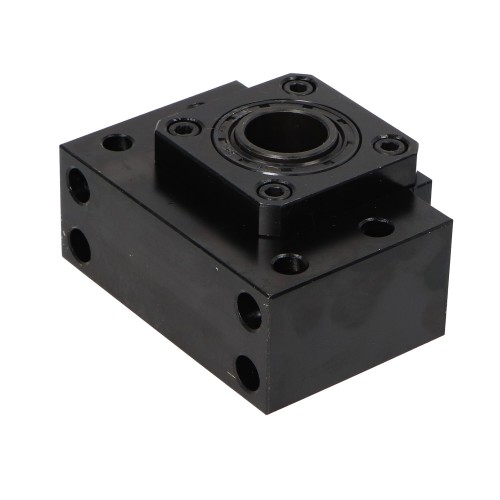

Bearing block BK25 C5 drive side LWP

Brand: Wagney
Product Code: MX-BK-25-LWP
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-18
57.30€
Ex Tax: 47.36€

Qty

Characteristics :

  • BK25 bearing block mounted on the drive side of the screw
  • Two angular contact bearings with an internal diameter of 25 mm are used
  • The bearings transfer thrust loads in both directions
  • Sealing rings protect the bearings against dirt
  • Bearings lubricated with high-quality grease
  • The design of the bearing block allows for mounting in a vertical and frontal position
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA, SYK, HIWIN
  • Accuracy class C5
  • Suitable for bearing ball and trapezoidal screws with diameters from 32mm to 36mm and any pitch
  • Compatible with BF series blocks

Length (L): 42 mm
Height (H): 80 mm
Diameter (d1): 25 mm
Base Width (B1): 64 mm
Height with Base (H1): 70 mm
Total Width (B): 106 mm
Mounting Screw Size (M): M5
Screw Lengths:
L1: 12 mm
L2: 54 mm
L3: 9 mm
Pitch (P): 85 mm
Thickness (T): 35 mm
Counterbore Diameter (C2): 10 mm
Dimension X: 11 mm
Dimension Y: 17 mm
Dimension Z: 11 mm
Width Tolerance (B +/- 0.0): 53 mm
Height Tolerance (h +/- 0.02): 48 mm
Counterbore Diameter (C1): 22 mm
