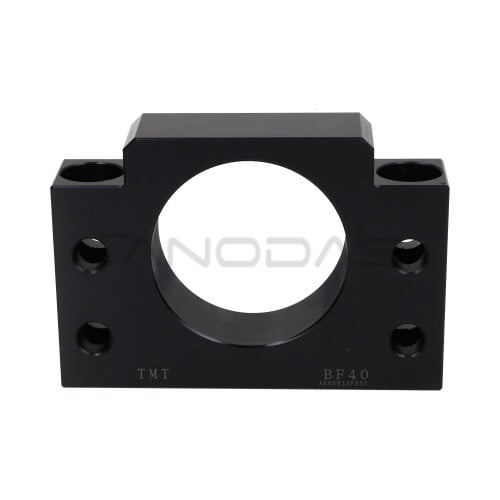

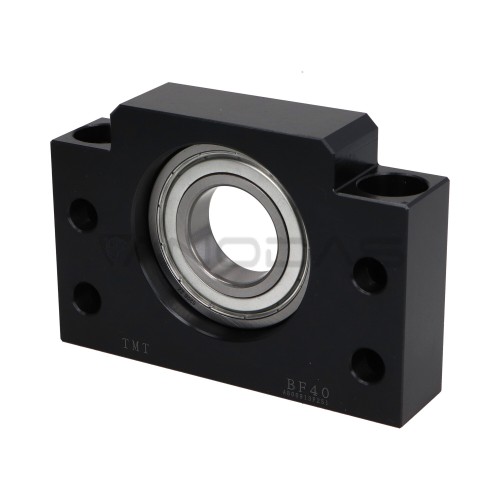

Bearing block BF40 C7 supporting side

Brand: Sonyung Industry Co.
Product Code: MX-IW-BF-40
Availability: 6-11 business days
Planuojama gavimo data po uĹľsakymo: 2025-05-13
112.40€
Ex Tax: 92.89€

Qty

Characteristics :

  • BF40 bearing block on the thread supporting side (can only take radial loads)
  • Floating bearing attached to ball screw. The design allows for thermal expansion of the thread.
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA
  • Accuracy class C7
  • Suitable for bearing ball and trapezoidal screws with a diameter of 50 mm and any pitch
  • Compatible with BK series blocks

Length: 37 mm
Height: 110 mm
Diameter: 40 mm
Width: 100 mm
Height: 90 mm
Total width: 160 mm
Pitch: 130 mm
Width tolerance: +/- 0.02 mm
Height tolerance: +/- 0.02 mm
Dimension X: 18 mm
Dimension Y: 26 mm
Dimension Z: 17.5 mm

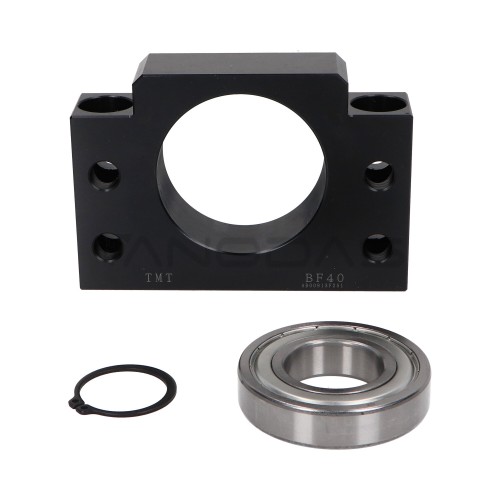

Bearing: 6208ZZ
Seger ring: S40
