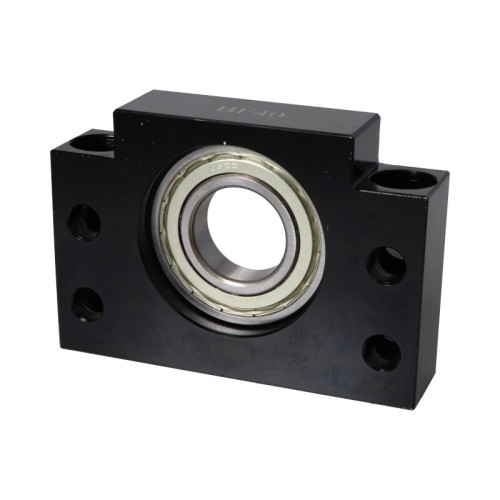

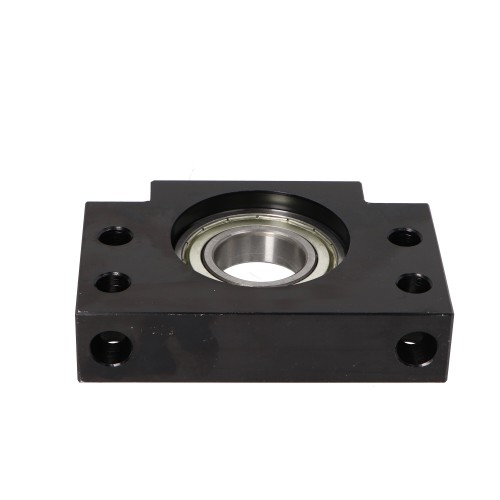

Bearing block BF40 C5 supporting side LWP

Brand: Wagney
Product Code: MX-BF-40-LWP
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-13
77.70€
Ex Tax: 64.21€

Qty

Characteristics :

  • BF40 bearing block on the thread supporting side (can only accommodate radial loads)
  • Floating bearing attached to ball screw. The design allows for thermal expansion of the thread.
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA
  • Accuracy class C5
  • Suitable for bearing ball and trapezoidal screws with a diameter of 50 mm and any pitch
  • Compatible with BK series blocks

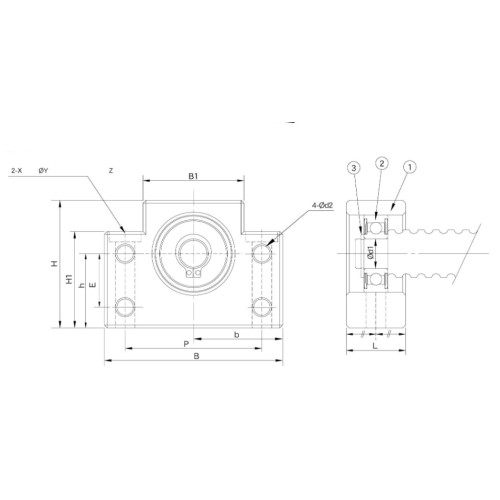

Length (L): 37 mm
Height (H): 110 mm
Diameter (d1): 40 mm
Base Width (B1): 100 mm
Height with Base (H1): 90 mm
Total Width (B): 160 mm
Pitch (P): 130 mm
Width Tolerance (B +/- 0.02): 80 mm
Height Tolerance (H +/- 0.02): 60 mm
Dimension X: 18 mm
Dimension Y: 26 mm
Dimension Z: 17.5 mm
Bearing: 6208ZZ
Seger Ring: S40
