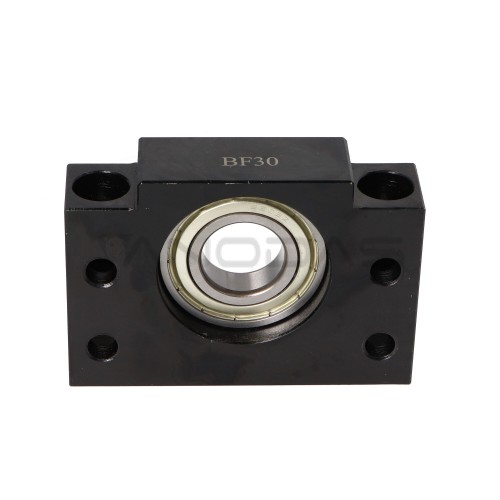

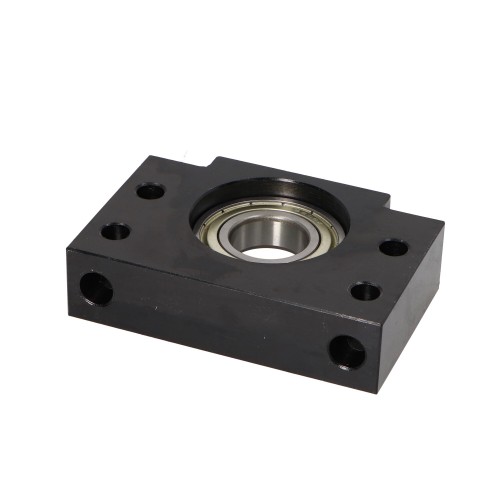

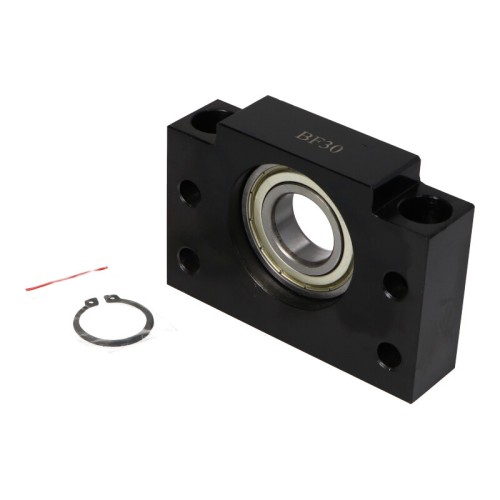

Bearing block BF30 C7 supporting side LWP

Brand: Wagney
Product Code: MX-BF-30-LWP
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-16
40.60€
Ex Tax: 33.55€

Qty

Characteristics :

  • BF30 bearing block on the thread supporting side (can only accommodate radial loads)
  • Floating bearing attached to ball screw. The design allows for thermal expansion of the thread.
  • Interchangeable with other brands such as THK, NSK, MISUMI, KURODA
  • Accuracy class C7
  • Suitable for bearing ball and trapezoidal screws with diameters from 36mm to 40mm and any pitch
  • Compatible with BK series blocks

Length (L): 32 mm
Height (H): 89 mm
Diameter (d1): 30 mm
Width (B1): 76 mm
Height (H1): 78 mm
Total Width (B): 128 mm
Pitch (P): 102 mm
Width Tolerance (B +/- 0.02): 64 mm
Height Tolerance (H +/- 0.02): 51 mm
Dimension X: 14 mm
Dimension Y: 20 mm
Dimension Z: 13 mm
Bearing: 6206ZZ
Seger Ring: S30
