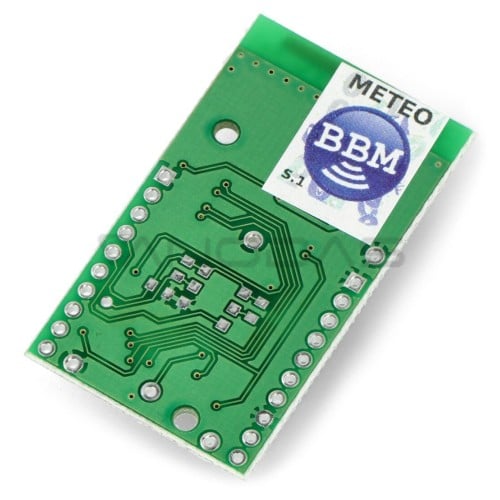

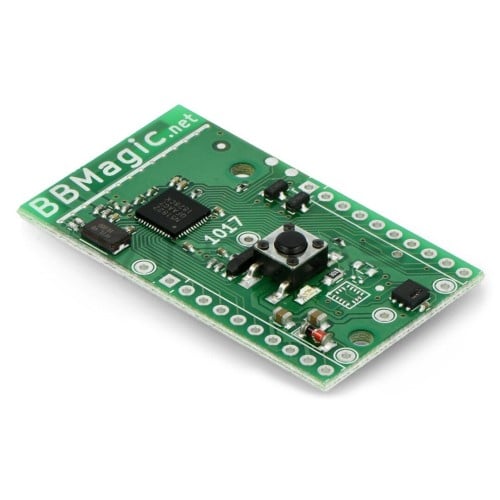

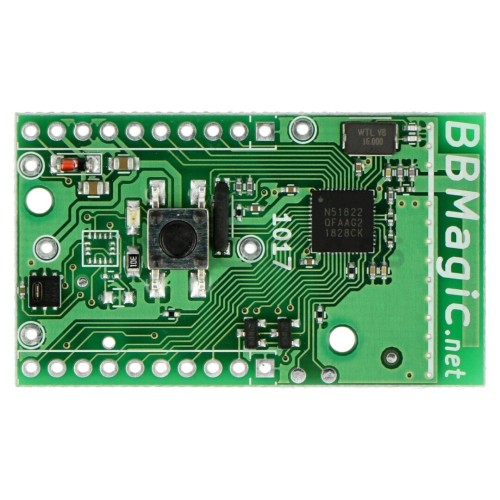

BBMagic Meteo - Wireless temperature and humidity sensor

Brand: BBMagic
Product Code: AN-15521
Availability: Temporarily Out Of Stock
25.40€
Ex Tax: 20.99€
BBMagic Meteo wireless measuring module equipped with SHT20 sensor responsible for temperature and humidity measurement, the module communicates via Bluetooth Low Energy (BLE). Additionally, by soldering the photoresistor it is possible to measure the lighting. The module is powered from 1.8 V to 3.6 V. The module is compatible with Raspberry.

Specification:
  • Power supply for the module:
    • Directly: 1.8 V to 3.6 V
    • Stabilizer: output 2.5 to 3.6 V
    • Battery CR2032 - after soldering the handle
  • Soldering place for the photoresistor
  • Monitoring of power supply voltage status
  • Measurement of ambient temperature:
    • Measuring range: -40 °C to 125 °C
    • Measuring accuracy: +/- 0.3 °C
    • Measuring resolution: 0.04 °C
    • Typical response time: 15 seconds
    • Long-term drift: < 0.02 °C
  • Measurement of ambient humidity:
    • Measuring range: from 0% RH to 100% RH
    • Resolution of measurement: 1% RH
    • Typical response time: 8 seconds
    • Long-term drift: < 0.25% RH/year
  • Radio communication indicated by an LED
  • Encrypted and digitally signed communication AES-128
  • Dimensions: 46 x 26 mm
