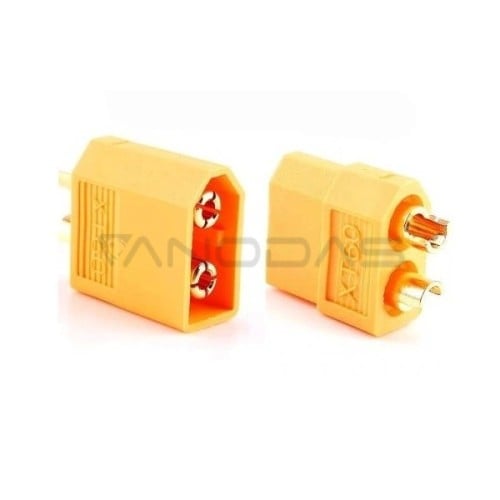

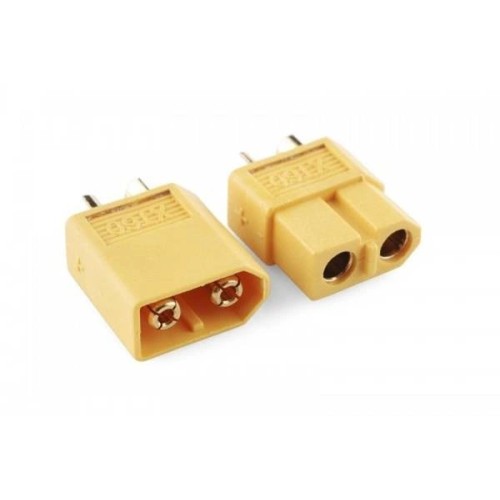

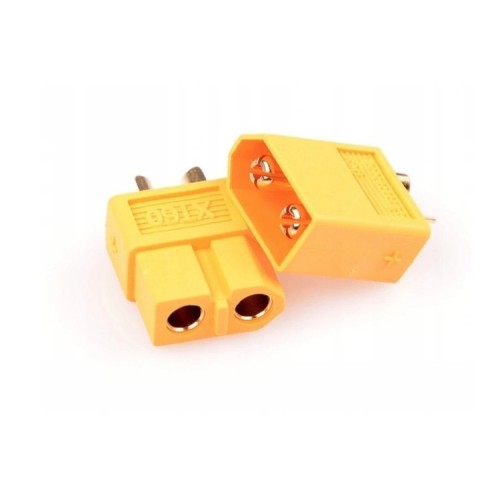

Battery connector set XT60 socket plug

XT60 plug and socket is a high-current high-quality connector with high electrical and insulation parameters. The XT60 connector is a very reliable battery connector. Perfect for modeling work and electrical systems.

Features:

• The connector design allows the use of wires with a cross section of 1 to 5 mm2.
• Contacts with very low contact resistance and very large contact area.
• Compact connector design.
• Gold-plated high-current contacts (based on 3.5 mm2 gold).
• It is characterized by small size, low weight and effective current parameters.
• XT60 is slightly larger than the XT60U connector.
• Connectors are most often used in connections between the speed controller and the battery in aircraft and between the package and the power distribution board in drones.
• The special connector design on the 3.5mm gold allows it to operate at high current and also prevents reverse connection.

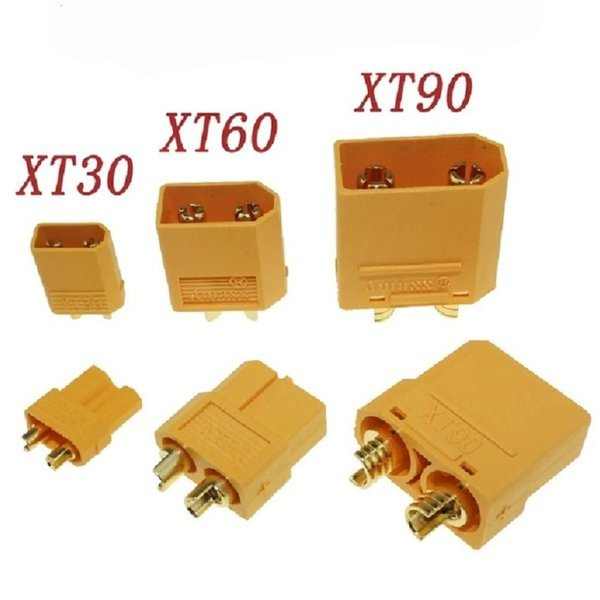

• Dimensional comparison with XT60 and XT90 plug:

Specifications:

• High current contacts made of 3.5mm2 gold
• Number of contacts: 2
• Recommended wires 10–15AWG (1–5 mm2)
• Housing color: yellow
• Overall connector dimensions: 40x15.8x8.1mm
• Set weight: 6.9g
• Continuous current: 65A
• Sudden current: 80A
• Rated voltage: 500V
