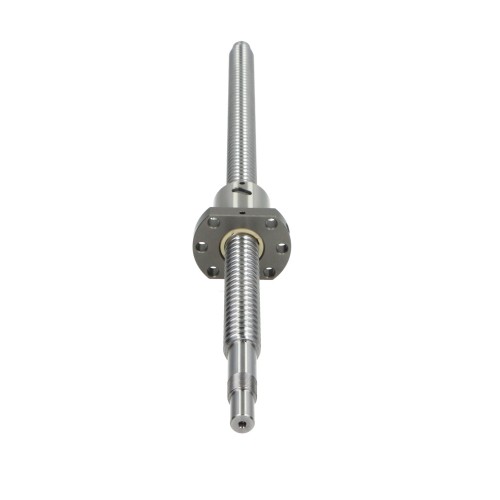

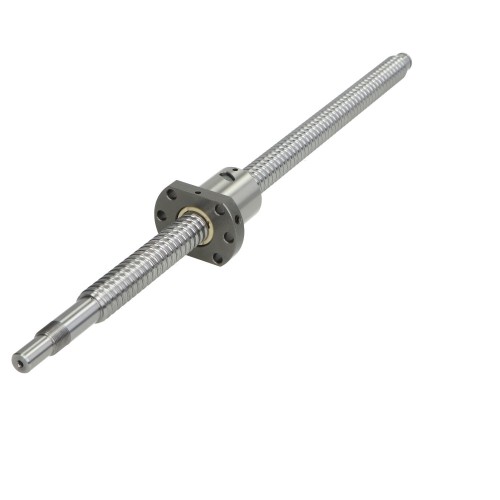

Ball screw with nut SFU2005 1400mm with machining for bearing blocks

Brand: Wagney
Product Code: MX-SFU-2005-1400-OBR
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-04-16
99.90€
Ex Tax: 82.56€

Qty

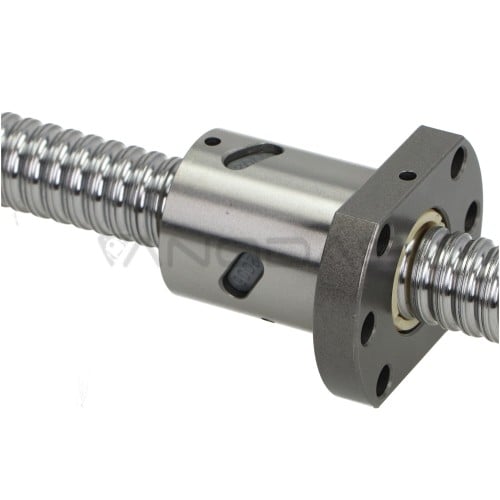

The high-quality ball screw and nut have rounded ends that enable installation in typical size 15 bearing blocks.

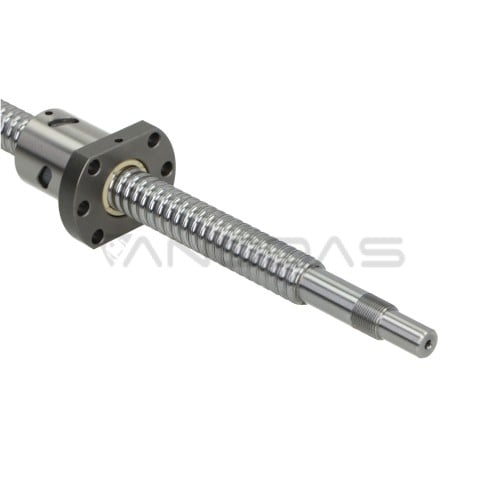

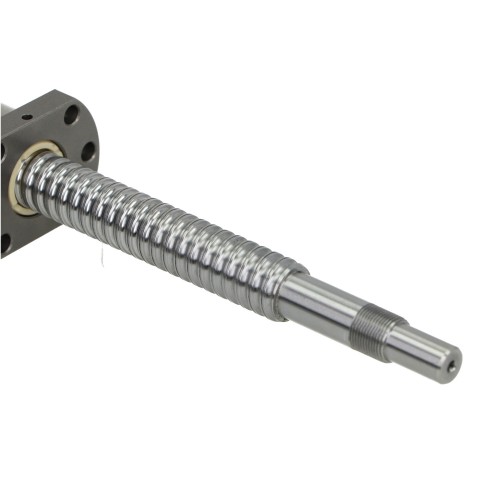

Ball screw with an external diameter of 20 mm and a thread pitch of 5 mm, working length of the thread 1400 mm. The total length including the rolled bearing journals and the clutch mounting journal is 1473mm.

The materials used and the machining process of the ball thread and ball nut ensure:

  • Obtaining high repeatability of movement and precision,
  • High mechanical efficiency,
  • Long periods of failure-free operation
  • Low torque needed to drive the nut
  • Perfect fit for size 15 bearing blocks on both the drive and support sides

The SFU nut, which is standardized in terms of dimensions, allows interchangeable use with manufacturers such as HIWIN, THK, INA, REXROTH, SKF and others.

We offer special BEARING BLOCKS to support the ball screw

from the drive side - BK15, EK15, FK15

from the supporting side - BF15, EF15, FF15


Height (H1): 44 mm
Width (B): 10 mm
Screw Size (G): M6
Length (L1): 43 mm
Diameter (D2): 36 mm
Stroke: 5 mm
Diameter (D3): 58 mm
Diameter: 20 mm
Working Length: 1400 mm
Total Length: 1473 mm
Diameter (D4): 47 mm
Diameter (D5): 6.6 mm
