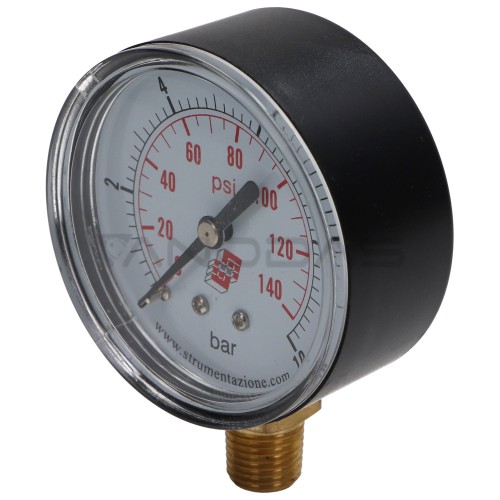

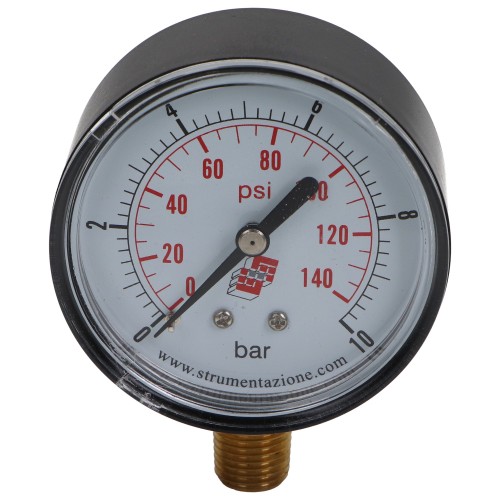

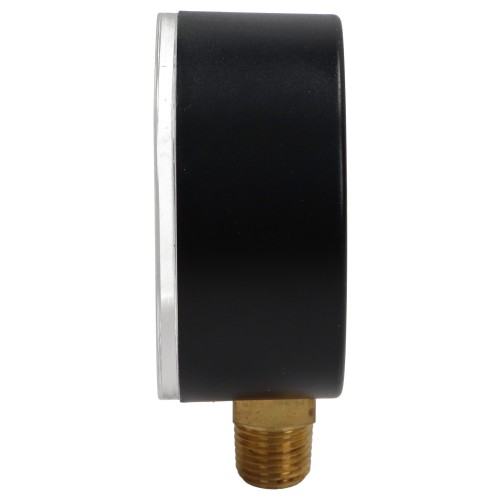

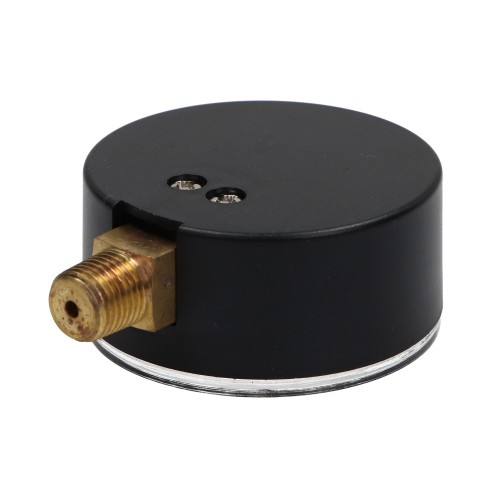

Axial pressure gauge 0-10 bar, G 1/4, 63 mm

Brand: Pneumat
Product Code: MX-M63A-PL010G14
Availability: 6-11 business days
Planuojama gavimo data po užsakymo: 2025-05-20
13.80€
Ex Tax: 11.41€

Qty

The axial pressure gauge is a reliable measuring tool, ideal for precise monitoring of gas and liquid pressure in a variety of applications. It has an impressive pressure range of 0 to 10 bar, with a graduation of 0.2 bar, which allows for precise measurement even in the most demanding conditions. The G1/4 thread and 63 mm diameter ensure easy and reliable connection of the pressure gauge. The standard design with a tube spring (Bourdon) and accuracy class 2.5 guarantee reliable measurement. The connection located at the rear makes it easy to install. The pressure gauge is equipped with a connection and measuring element made of a copper alloy, which guarantees corrosion resistance and measurement stability. The black plastic housing and transparent plastic window ensure durability and clarity of reading. The axial pressure gauge is designed for measuring the pressure of gases and liquids that are inert to copper alloys and do not cause blockages in pressure systems.


Thread: 1/4"
Range: 0 - 10 bar
Dial diameter: 63 mm
Class: 2.5
Housing: plastic
Threaded connection: bottom
