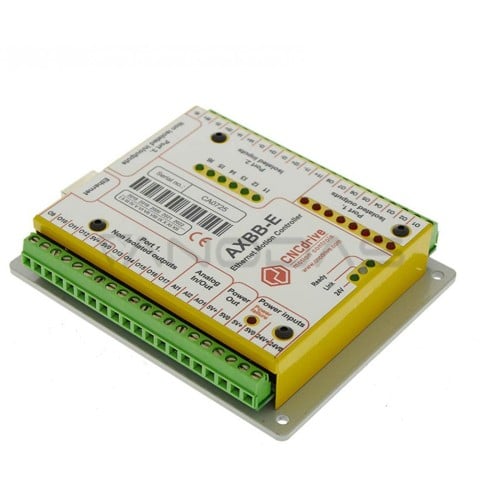

AXBB-E motion controller

The AXBB-E motion controller is a combination of a motherboard and a motion controller in an aesthetic, industrial metal housing. Works with UCCNC or MACH 3 and MACH4 software. The AXBB-E controller provides high frequency step direction signals up to 400KHZ, which enables seamless control of servo drives and stepper motors. The AXBB-E controller communicates with the computer via the Ethernet (LAN) interface. This is the best currently used solution for communication with CNC machines, it ensures quick machine response and high connection stability. AXBB-E can control up to 6 axes, and four of them are connected to screw terminals.

The AXBB motion controller has an additional IDC-26 connector, thanks to which we can expand the number of pulse outputs for the fifth and sixth axes and connect additional digital inputs, which gives us very wide application possibilities of this motion controller.

Advantages of the AXBB-E motion controller:

- Complete motion controller and motherboard solution in one device.

- 8 optically isolated high-speed N-channel mosfet transistor outputs. (NPN)

- 9 non-isolated buffered TTL outputs to drive step/dir, PWM, etc. signals up to 400 kHz

- Isolated charge pump output with N-channel MOSFET.

- 6 fast opto-isolation inputs.

- 1 non-isolated IDC26 expansion port with standard LPT port pins (additional 12 outputs and 5 inputs).

- LED indicators on isolated I/O.

- Isolated inputs/outputs are rated for 24 VDC operation

- Stable and fast connection to the computer via the Ethernet port

Sample connection diagram
