Automation systems for swing gates ETM-02 for 7m and 700kg gates

Gate automation ETM-02 is a great choice. The cylinders are characterized by high reliability, high engine power and high speed. When you buy from us, you choose the best value for money. You only pay for what you need. We focus on equipment reliability so everyone can enjoy their equipment work. The actuator must operate every time we return home, which is the basis of the ETM-02 kit. All thanks to exemplary quality, proven materials and countless tests for service life and weather resistance.

Specifications:

• Overall length folded: 825 mm
• Cylinder stroke: 400 mm
• Engine power: 60 W
• Motor Voltage: 24 VDC
• Expansion speed: 24 mm / s
• Rotation speed: 300 rpm
• Weight: 4.5 kg
• Max. opening leaf length: 3.5 m
• Max. opening leaf weight: 350 kg

• Class: IP55


Control panel settings:

• Power supply: 230V AC
• Voltage: 24 V DC
• Power consumption: 140 W
• Receiver Frequency: 433.92 MHz
• Max. control range 100 m
• Dimensions 260x185x90 mm
• Operating temperature: -25 ~ + 65 C


Security:

• Amperometric: Smooth programmable sensitivity overload system (2 channels).
• Alarm: The 24 V VAC warning light comes on when the machine is running.
• Optical: alarm input, stopping machine, possibility to use photocells, buttons, sensors.
• Time: Calculation of actuator operating time between "soft start" and "soft stop".
• Terminal: Operation stops when dangerous temperature limit is exceeded.
• Battery: The ability to connect an emergency battery, available for multiple cycles.

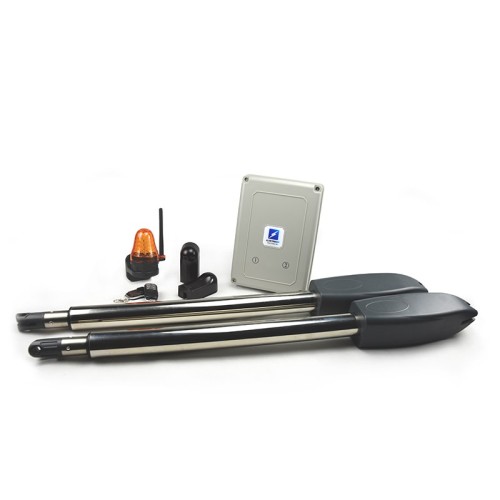

Included:

• 2 linear actuators

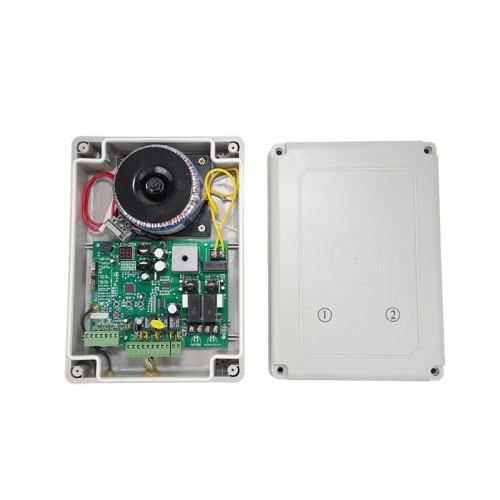

• Control Center

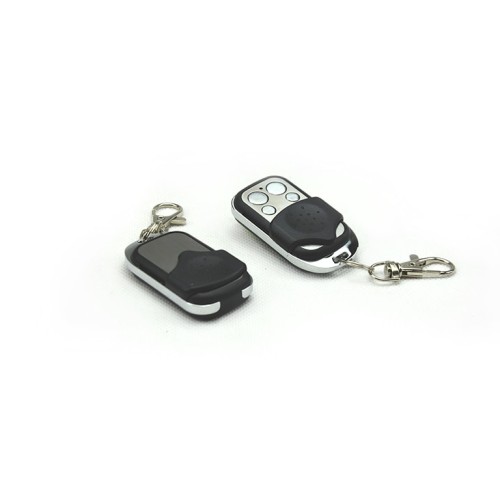

• 2 remote controls
• Optical barrier

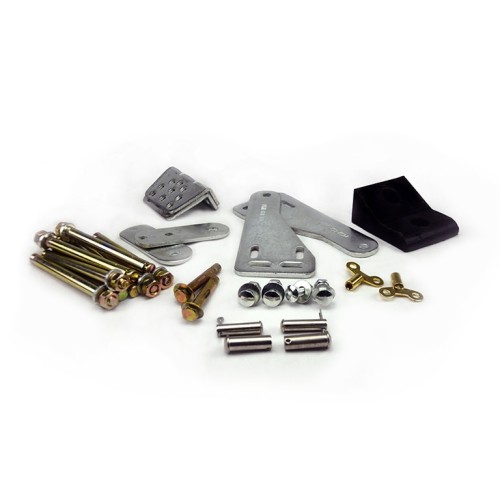

• Fastening bolts
