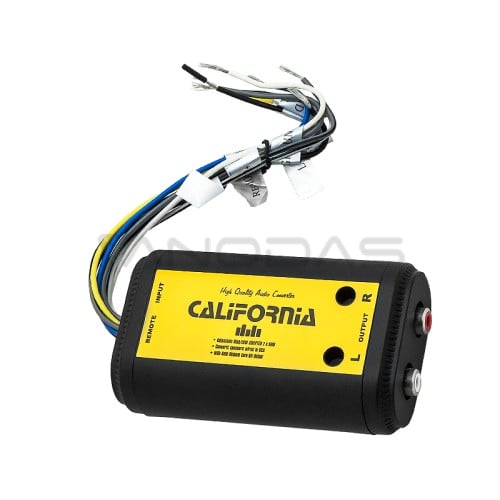

Audio level converter with control HIGH-LOW

High-quality 2-channel converter converting loudspeaker signal into RCA line signal - in. 2x50W / output 2xRCA, smooth signal level adjustment. Allows you to connect an external amplifier to a headunit without RCA (CINCH) outputs. It has an interference filter and separates the DC component. It has smooth regulation of the output signal separately for each channel. REMOTE TURN ON/OFF output - a circuit for switching on and off an external power amplifier. Designed for radios up to 2x50W. 2 RCA outputs (left and right channels)

Wiring diagram:
- "L OUTPUT R" - RCA signal outputs for the left (L) and right (R) channels connected to the RCA inputs of the amplifier
- "REMOTE" (power supply and Remote output to control the amplifier)
(GROUND) - black wire - power supply ground (-12V) - connect to the power supply ground of the radio receiver, amplifier or to
vehicle body
(12V) - yellow wire - power supply (+12V) - connect e.g. to the power cord of the radio receiver or amplifier
(REMOTE OUT) - blue wire - Remote output (+12V) for switching the amplifier on/off - connect to the Remote input
in the amplifier
- "INPUT" (signal inputs - speakers
white wire (L+) - connect to the loudspeaker output of the radio receiver
for the left channel with positive polarity (+)
black and white cable (L-) - connect to the loudspeaker output of the radio receiver for the left channel with negative polarity (-)
black wire (Ground) - ground - connect to ground to minimize interference
gray wire (R+) - connect to the loudspeaker output from the radio receiver for the right channel with positive polarity (+)
gray-black wire (R-) - connect to the loudspeaker output from the radio receiver for the right channel with negative polarity (-)

Installation:
Set the potentiometer knobs to min.
Connect the wires according to the connection diagram
Turn on the radio by giving an external signal to the wires
Adjust the potentiometers to the appropriate signal value
