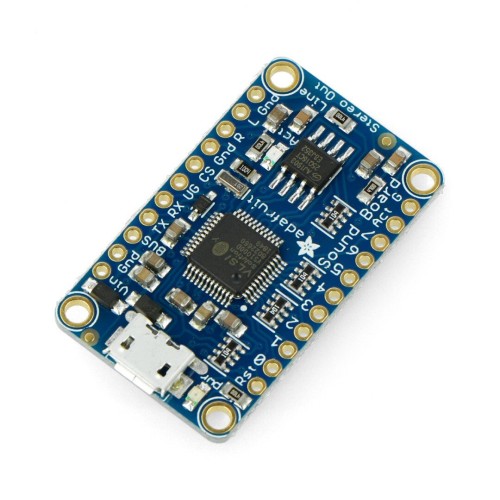

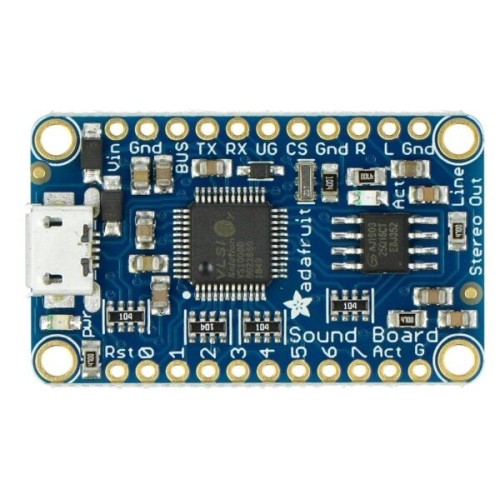

Audio FX Mini Sound Board, WAV / OGG 2MB player, Adafruit 2342

The standalone module supports the playback of WAV or OGG files stored in memory. The device is powered with voltage from 3 V to 5.5 V, has a stereo output that can be programmed via microUSB. This version has 2 MB of internal Flash memory.

Main features:

• Does not require an additional controller module, it is an independent device

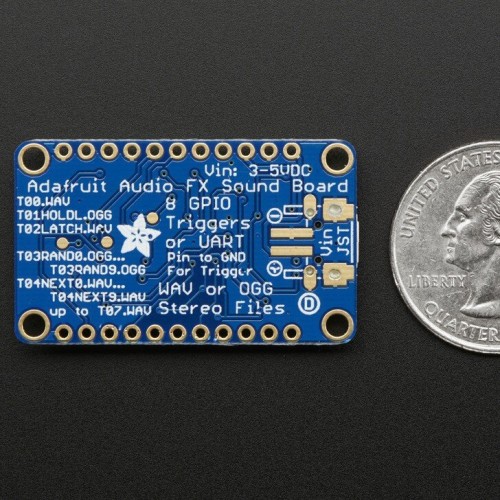

• The board has small dimensions: 38 x 23 x 4 mm
• The weight is about 4 g

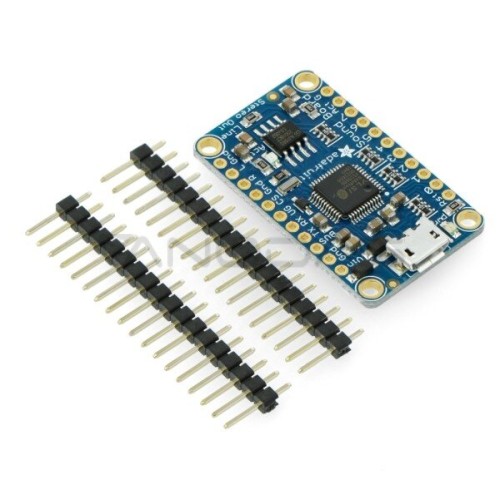

• This kit includes the goldpin connectors 2.54 mm raster for self-soldering
• Has built-in memory, thanks to it does not require external media. 2 MB is enough to store about 4 minutes of uncompressed stereo sound

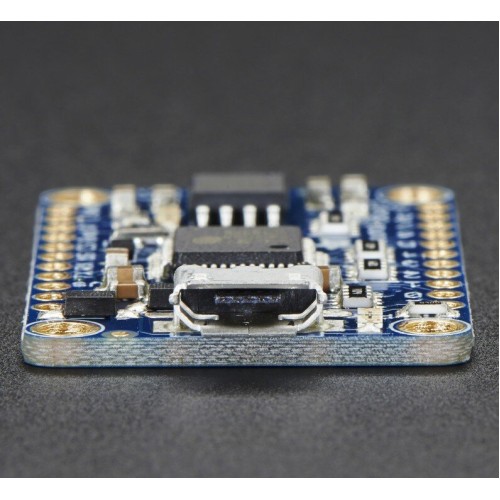

• When connected via USB cable, appears in the system data storage device (such as media) to which you can upload audio files
• The high-quality module plays 16-bit stereo sound at 44.1 kHz
• 8 sources trigger playback can be controlled with the 8 buttons or other sources

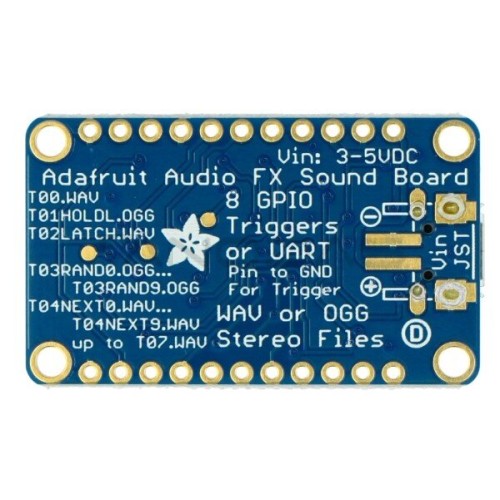

• Five different reactions to the release, configured by changing the file name - without the need for programming

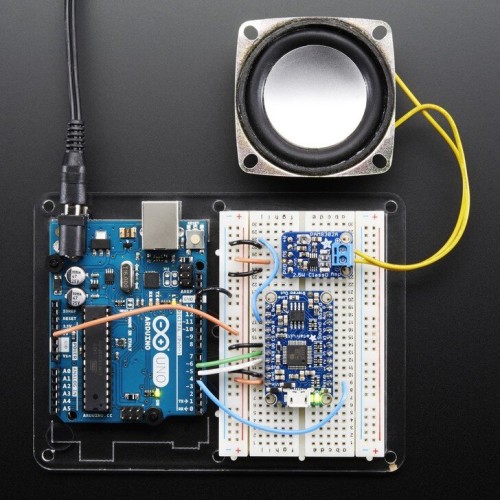

• Control via UART interface - any microcontroller, e.g. Arduino using an existing library


Useful links:
Manual
