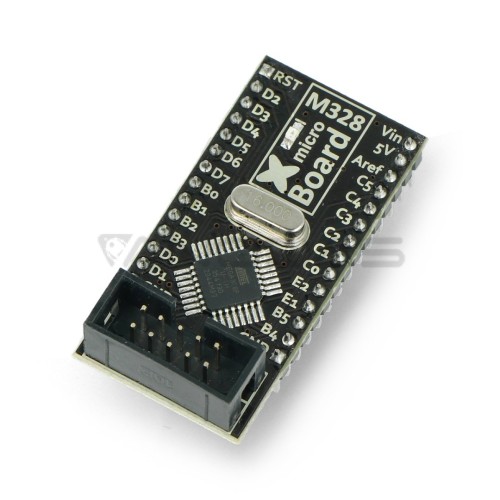

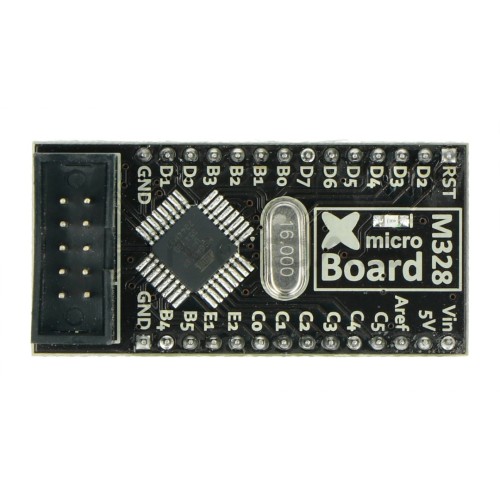

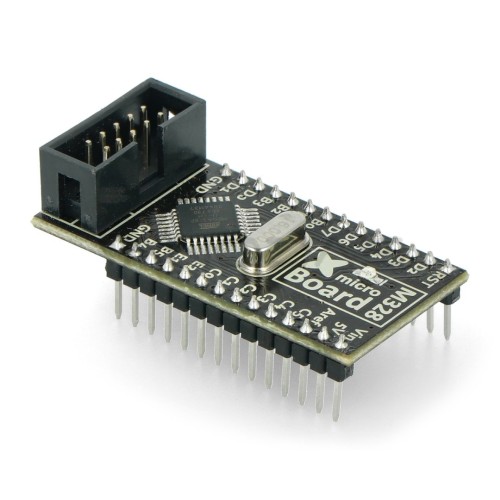

ATmega328 mini module - microBOARD-M328

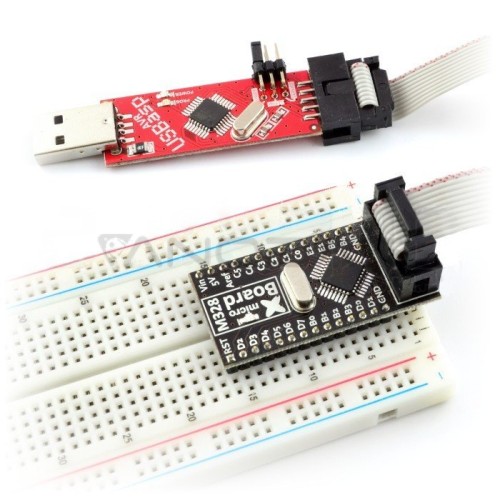

Module microBOARD-M328 is a mini development set with microcontroller ATmega328P used in popular Arduino Uno modules. On the board, there is also a voltage regulator 5 V, quartz resonator 12 MHz and programmer connector IDC-10 (Kanda). The module can be programmed in C language just like BASCOM AVR and Arduino IDE using the adapter USB-UART after the boot loader.

Main features:

• 32 KB Flash memory (program memory)
• 1 KB of SRAM (Static RAM)
• 2 counters/timers 8-bit
• 1 counter/timers 16-bit
• 1 analog-to-digital Converter (8 channels 10-bit accuracy)
• Network interfaces: SPI, UART, TWI (I2C)
• Built-in analog comparator
• 6 PWM channels


Specification:

• Microcontroller: ATmega328P-AU
• Connector for ISP programming

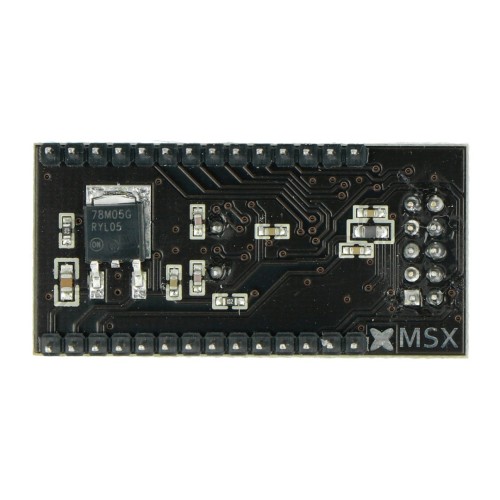

• Voltage regulator 5 V (78M05)
• Maximum current: 0.5 A
• The supply voltage of the microcontroller is filtered using capacitors
• Supply voltage analog part, optionally filtered using ferrite balls
• Power supply by continuous voltage in the range 7 - 12 V
• LED  indicating the connection of the supply voltage
• The pins of the microcontroller are on 2 connection pins (goldpin) – with the exception of the outputs are connected to the quartz resonator
• Resistor pulling-up RESET supply voltage (5 V)
