AS7265x, spectrophotometer (Qwiic), SparkFun SEN-15050

Brand: Sparkfun
Product Code: AN-13627
Availability: 4-6 business days
Planned delivery date after ordering: 2025-03-11
103.40€
Ex Tax: 85.45€

Qty

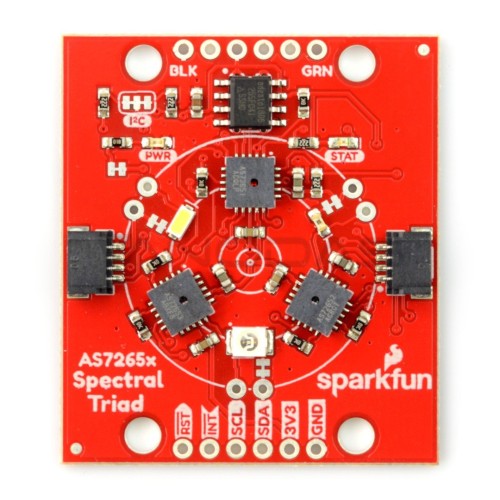

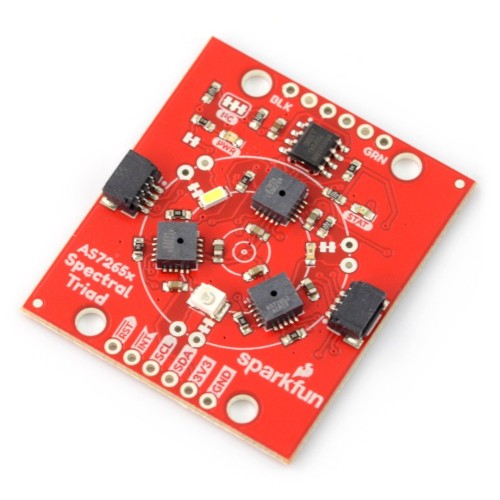

An inspection sensor is also known as a spectrophotometer. The module contains three spectral sensors AS7265x with LED, UV and IR diodes. The board has such sensors as AS72651, AS72652 and AS72653 and can detect light from 410 nm (UV) to 940 nm (IR). In addition, 18 individual frequencies of light can be measured with a precision of up to 28.6 MW/cm2 and an accuracy of +/- 12%. System Qwiic simplifies the sensor connected to the project, without the need for soldering.

Specification:

  • Supply voltage: 3.3 V
  • Communications: I2C / UART
  • 18 frequencies of detecting the light from 410 nm to 940 nm
  • Accuracy: 28.6 nW/cm2
  • Precision: +/- 12 %
  • EEPROM memory: 4 Mb
  • Built-in LEDs:
    • UV: 405 nm
    • LED white: 5700k
    • IR LED: 875 nm
  • Software control of each diode and a current
  • Additional external control of bulbs or lighting
  • Programmed via the latest firmware AMS
  • Dimensions: 46 x 41 mm
