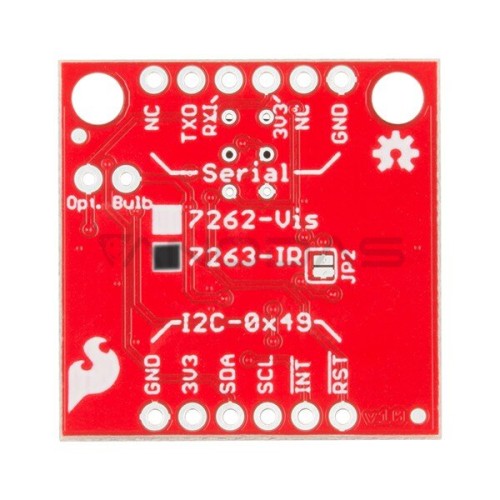

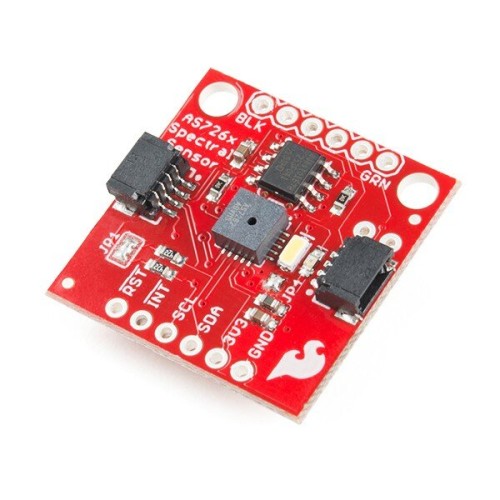

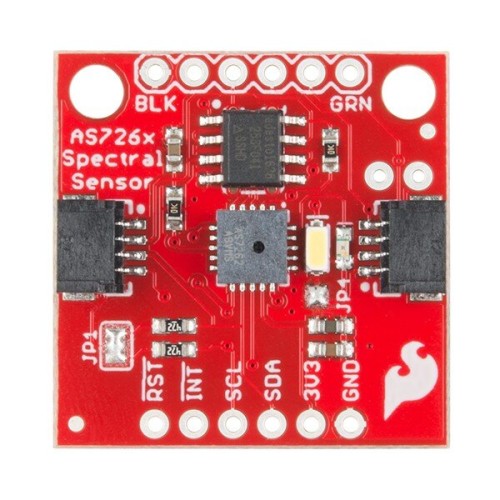

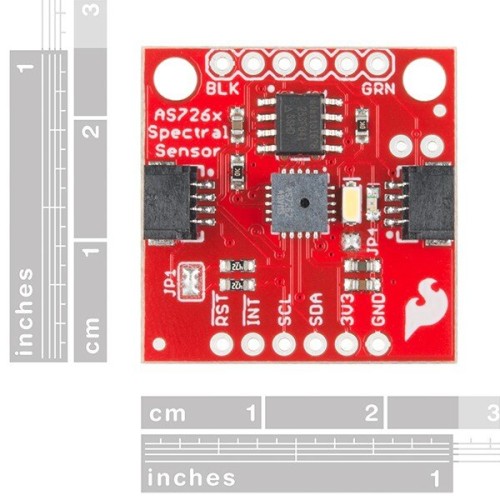

AS7263 NIR, light spectrum sensor, SparkFun SEN-14351

The module is equipped with a sensor of the spectrum of visible light and NIR (near-infrared light), which allows you to measure and characterize how different materials absorb and reflect light waves. The sensor detects waves below the visible range within the near-infrared NIR. The sensor communicates using I2C and UART interface via AT commands. It has two connectors Qwiic, a pitch of 1 mm, and the connectors for soldering the goldpin strap of 2.54 mm (sold separately).
The board has a built-in LED with a power of 5700 K, which is used to illuminate the objects. You can solder any LED operating at a voltage of 3.3 V.

Specification:

• Supply voltage: 2.7 V to 3.6 V
• 6 visible channels: 610, 680, 730, 760, 810, and 860 nm, each from 20 nm of FWHM
• 16-bit ADC with digital access
• The programmable driver of LED
• Communication interface: I2C and UART
• Connectors:
• 2x Qwiic pitch of 1 mm
• 2x 6-pin lead, the pitch of 2.54 mm


Useful links:
Website of manufacturer
Manual
