Arduino XXL Starter Kit
Product Code: MX-IW-ICH-Z-ARDUINO
Availability: 6-11 business days
Planuojama gavimo data po uĹľsakymo: 2025-05-13
Ex Tax: 50.58€
ARDUINO UNO R3 Clone
The perfect set for beginners and advanced programmers
Completely compatible with Arduino software
High quality
A rich set of accessories
A combination of fun and education
MEGA XXL STARTER KIT ARDUINO UNO R3 STARTER KIT

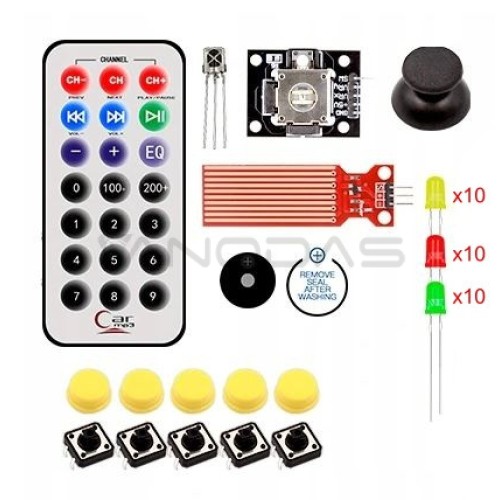

Set contents:
1. Arduino Uno R3 Clone
2. USB A/B cable
3. Prototype breadboard with 830 fields
4. Set of 30 male-to-male breadboard wires
5. Set of 10 female-male cables
6. 2x16 1602 LCD display
7. 1x 4-segment display
8. 8 x 8 LED matrix
9. 4 x 7-segment display
10. IR remote control
11. Infrared (IR) receiver
12. LM35DZ temperature sensor
13. Joystick module
14. Liquid water level sensor - analog
15. Buzzer - 2 pcs
16. Tact Switch button + overlays – 5 pcs.
17. Green LEDs – 10 pcs.
18. Yellow LEDs – 10 pcs.
19. Red LEDs – 10 pcs.
20. Potentiometer 10k
21. DHT11 temperature and humidity sensor module
22. Shift register 74HC595N
23. RGB LED
24. RFID reader
25. RFID card
26. RFID keychain
27. Matrix keyboard 16 keys
28. Real-time clock module
29. Module with a 5V 10A relay
30. Photoresistor GL5528 10k-20k - LDR 5mm 5528 - 3pcs
31. Stepper motor 28BYJ-48
32. ULN2003 V2 driver for a stepper motor
33. Sound sensor, microphone, noise detector "clapper"
34. TOWER PRO SG90 9G 180° SERVO
35. SW-520D vibration vibration sensor - 2 pcs.
36. 9V battery clip with DC plug
37. Set of resistors: 220 Ohm – 10 pcs., 1k – pcs., 10k – 10 pcs.

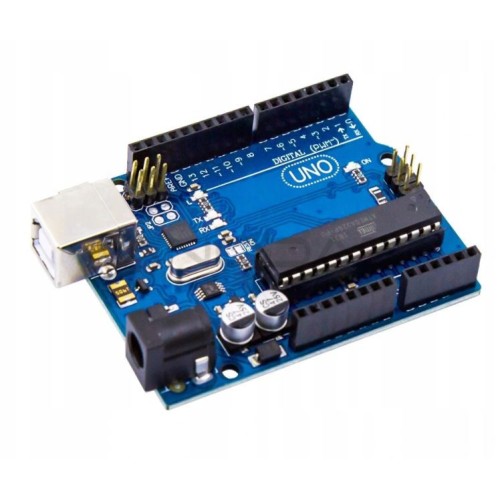

DESCRIPTION OF THE ELEMENTS INCLUDED IN THE SET:UNO R3 ATMEGA328
The module is fully compatible with Arduino Uno R3. this means that it can be programmed via the Arduino IDE using available libraries.
The module has:- ATmega328 microcontroller - the system is clocked with a clock signal with a frequency of 16MHz
- 14 digital inputs/outputs,
- 6 PWM channels - e.g. for controlling servos/motors, e.g. SG-90, 6 analog inputs
- popular communication interfaces
- USB connector
- DC power socket
- RESET button
- pins for connecting the AVR programmer.
To start it, connect the system to the computer using a USB cable and select the Arduino Uno board in the Arduino IDE environment.
the module is mostly compatible with shields intended for Duemilanowe and Diecimila
RFID reader with card and key ringRFID contactless access control module. Allows you to build alarm systems, access systems, etc. Perfect for uC AVR systems, Arduino, PIC, and others
Sensor module that detects the water level in tanksThe rain sensor module is a simple system that detects the resistance of the probe. Water causes a drop in resistance between the probe traces - which, after amplification, is detected by the microcontroller
The module has an output: analog
Power supply: 3-5V
Current consumption max 20mA
Detection plate area: 40x16 mm
Operating temperature 10-30*C
