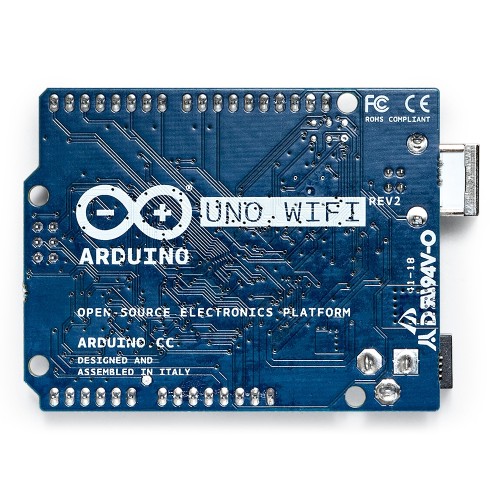

Arduino Uno WiFi Rev2 - ABX00021

Brand: Arduino
Product Code: AN-13281
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11
79.80€
Ex Tax: 65.95€

Qty

Add this board to a device and you'll be able to connect it to a WiFi network, using its secure ECC608 crypto chip accelerator. The Arduino Uno WiFi is functionally the same as the Arduino Uno Rev3, but with the addition of WiFi and some other enhancements. It incorporates a brand new 8-bit microprocessor from Microchip and has an onboard IMU (Inertial Measurement Unit).

The Wi-Fi Module is a self-contained SoC with integrated TCP/IP protocol stack that can provide access to a Wi-Fi network, or act as an access point.

The Arduino Uno WiFi has 14 digital input/output pins—5 can be used as PWM outputs with Pin 11 that is not PWM as on the UNO Rev3 —6 analog inputs, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller. Simply connect it to a computer with a USB cable or power it with an AC adapter to get started.

Specification

  • Microcontroller ATMEGA4809
  • Operating Voltage 5V
  • Input Voltage (recommended) 7 - 12V
  • Input Voltage (limit) 6 - 12V
  • Digital I/O Pins 14 — 5 Provide PWM Output PWM
  • Digital I/OPins 5
  • Analog Input Pins 6
  • DC Current per I/O Pin 20 mA
  • DC Current for 3.3V Pin 50 mA
  • Flash Memory 48 KB (ATMEGA4809)
  • SRAM 6,144 B (ATMEGA4809)
  • EEPROM 256 Bytes (ATMEGA4809)
  • Clock Speed 16 MHz
  • LED_BUILTIN 25
  • Length 68.6 mm
  • Width 53.4 mm
  • Weight 25 g

Lniks

Arduino page ABX00021
