Arduino UNO Mini Limited Edition - ABX00062

Brand: Arduino
Product Code: AN-20654
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
66.70€
Ex Tax: 55.12€

Qty

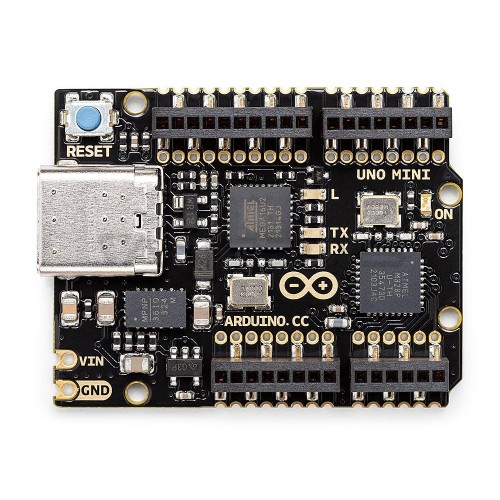

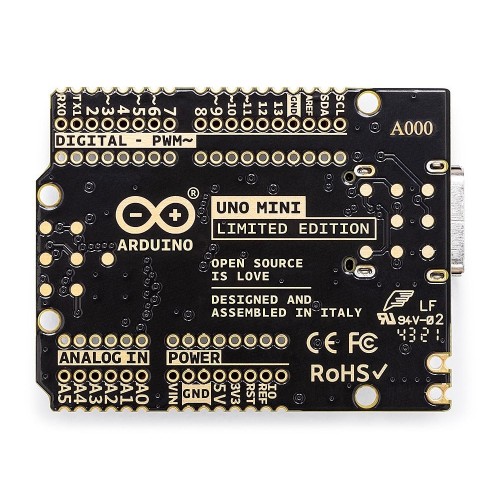

Limited collector's edition of popular Arduino UNO board. It's a miniaturized, but fully functional version of well known Arduino UNO. The board was made in black with gold additions, with elegant design and packaging. Each produced board has its own PCB number and includes a hand-signed letter from Arduino founders. The miniature version of the Arduino Uno was created to celebrate the Arduino community and the many years of work by the entire team.

Main features:
  • ATmega328P - classic, efficient microcontroller with low power consumption

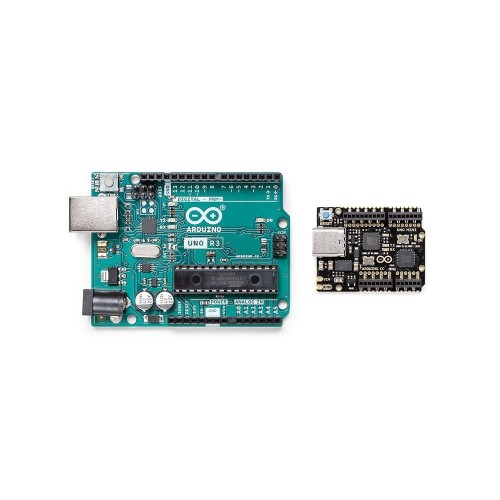

  • Small size - Arduino UNO LE (Limited Edition) is 25% the size of a standard Arduino UNO board
  • Pin Raster - The pin spacing is 0.05" or 1.27 mm. This is half the distance compared to the classic UNO board (0.1" or 2.54 mm)
  • EEPROM - the ATmega328P is equipped with 1 kb of EEPROM memory, which is not erased when power is removed
Specification:
  • Microcontroller: ATmega328P
  • Connector: USB type C
  • Embedded LED pin: 13
  • Number of digital I/Os: 14
  • Number of analog inputs: 6
  • PWM pins: 6
  • UART: yes
  • I2C: yes
  • SPI: yes
  • Logic voltage: 5 V
  • Input voltage: 6 V to 21 V
  • Battery connector: none
  • Current capacity / I/O pin: 20 mA
  • Current capacity 3.3 V pins: 50 mA
  • ATmega328P clocking: 16 MHz
  • ATmega16U2 clocking: 16 MHz
  • Memory: ATmega328P:
    • SRAM: 2 kB
    • Flash: 32 kB
    • EEPROM: 1 kB
  • Dimensions: 34.2 x 26.7 mm
  • Weight: 8,05 g
