Arduino smart home experiment kit

Smart homes represent the future of living, with remote intelligent technology increasingly integrating into our daily lives. This trend is becoming ever more popular and highly valued by many. Designed to enhance the home environment, the smart home system integrates modern technologies such as computer systems, network communication, and automatic control. With Arduino, not only can you remotely control various devices, but it also offers numerous automated functions, such as controlling curtains, closing windows when it rains, and turning on lights in the dark. Additionally, the system's power is sourced from solar energy, which charges lithium batteries, making it a functional, intelligent, comfortable, practical, safe, convenient, and environmentally friendly service system. This kit provides Arduino C, Mixly, and Scratch graphical programming suitable for different age groups. Join us and enjoy the fun of DIY smart home projects!

Features

• This product offers a wide range of functionalities: servo controls for doors and windows, temperature and humidity detection, PIR motion sensing, LCD display, and Bluetooth control. It also includes various modules such as a passive buzzer for alarms, a photoresistor and rain sensor for detecting light intensity and rain, a WS2812 RGB module for displaying different colors, and a small fan controlled by PWM. The kit is powered by a solar panel that supplies energy to the development board.
• When connecting and disconnecting the batteries, please ensure correct polarity (this kit requires 18650 batteries, which need to be prepared separately).

Parameters

• Connector Input Voltage: DC 6V—9V
• Solar Panel Output Voltage: 6.5V
• Maximum Output Current: 800mA
• Maximum Power: 5.2W
• Working Temperature: 0-50℃
• Dimensions: [Please specify dimensions]
• Eco-friendly Attributes: ROHS compliant

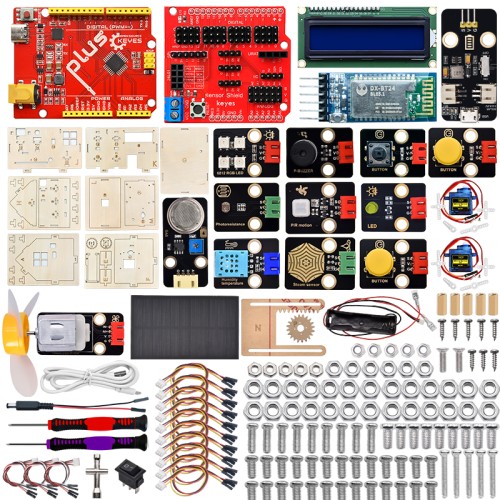

• Keyes Plus Development Board - 1 pc
• TYPE C Data Cable - 1 pc
• Keyes Expansion Board - 1 pc
• BT-24 Module - 1 pc
• Keyes Button Module - 2 pcs
• Button Cap - 2 pcs
• Keyes PIR Motion Sensor - 1 pc
• Keyes MQ-2 Analog Gas Sensor - 1 pc
• Keyes Photorisistor - 1 pc
• Keyes Passive Buzzer - 1 pc
• Keyes 130 Motor Fan - 1 pc
• Keyes Steam Sensor - 1 pc
• Keyes 6812 RGB LED - 2 pcs
• Keyes LCD 1602 Module - 1 pc
• Keyes Temperature and Humidity Sensor - 1 pc
• Keyes LED Module - 1 pc
• Keyes 6812 RGB Module - 1 pc
• Lithium Battery Module - 1 pc
• Microbit Battery Holder - 1 pc
• Solar Panel - 1 pc
• SG90 180° Servo - 2 pcs
• Phillips Screwdriver - 1 pc
• Switch - 1 pc
• 3P DuPont Wire - 10 pcs
• 4P DuPont Wire - 3 pcs
• M3*8MM Flat Head Screw - 2 pcs
• M2 Nut - 5 pcs
• M3 Nut - 6 pcs
• M4 Nut - 26 pcs
• M2*12MM Round Head Screw - 5 pcs
• M3*10MM Round Head Screw - 9 pcs
• M4*8MM Round Head Screw - 20 pcs
• M3 Self-lock Nut - 5 pcs
• M1.4*6MM Self-tapping Screw - 8 pcs
• M3*10MM Dual-pass Copper Pillar - 5 pcs
• M3*6MM Round Head Screw - 9 pcs
• Basswood Board - 1 pc
• Acrylic Board - 2 pcs
• Cross Wrench - 1 pc
• M2, M3, M4 2.0*40MM Phillips Screwdriver - 1 pc
• DC Connector - 1 pc
