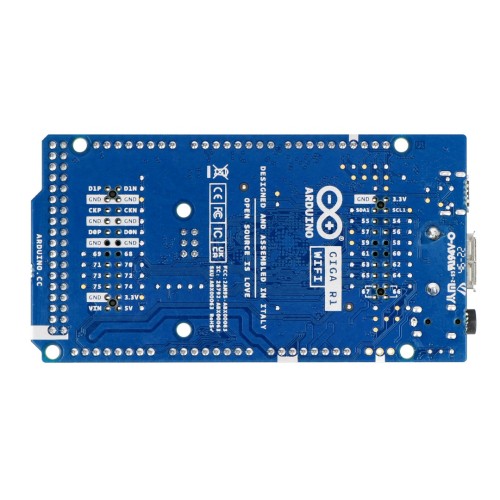

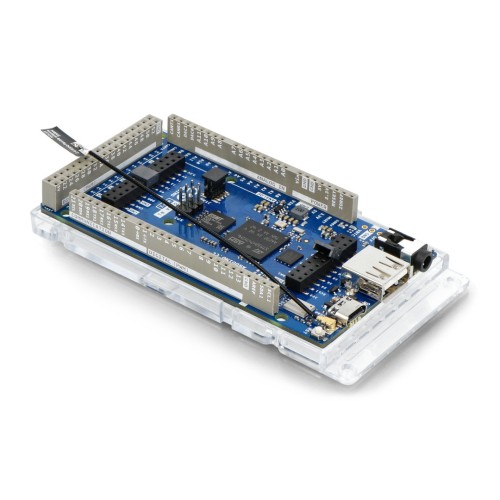

Arduino Giga R1 WiFi - ABX00063

Brand: Arduino
Product Code: AN-22660
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-11
104.20€
Ex Tax: 86.12€

Qty

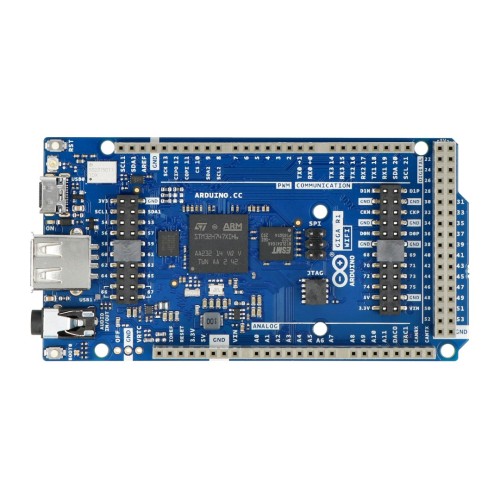

Arduino Giga R1 WiFi is designed for ambitious makers who are looking for an efficient board with wireless communication for their projects. It will work with gamers, artists, composers, machine learning, computer vision, games, robotics and many others. The board is based on a dual-core, 32-bit STM32H747XI microcontroller (ARM Cortex M7 480 MHz and ARM Cortex M4 240 MHz), which allows you to run MicroPython and Arduino codes simultaneously. Wireless communication is possible thanks to the Murata 1DX chip, which allows WiFi / Bluetooth communication. Thanks to it, it is possible to connect the board to the Arduino IoT Cloud and remotely control and monitor the project. The connection is encrypted using the ATECC608A chip.

Main features:
  • The board uses a dual-core STM32H747XI microcontroller, which can be programmed separately (M4 / M7). For example, you can run MicroPython and Arduino code simultaneously and communicate via RPC

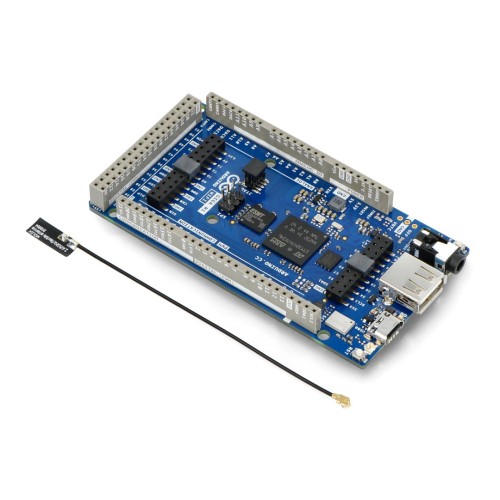

  • The board is equipped with the Murata LBEE5KL1DX-883 system for WiFi / Bluetooth communication
  • The Arduino Giga R1 WiFi supports MicroPython which can be set up in minutes
  • The board is equipped with a USB type C connector for communication/power supply/programming and a USB type A connector for connecting USB devices (keyboards, mass storage)
Specification:
  • Microcontroller: STM32H747XI Dual Core Cortex M7 + M4 32-bit
  • Wireless communication: Murata 1DX dual WiFi 802.11 b/g/n 65 Mb/s and Bluetooth
  • Protection chip: ATECC608A-MAHDA-T
  • USB:
    • USB type C: programming / HID
    • USB Type A: Host (enabled with PA_15)

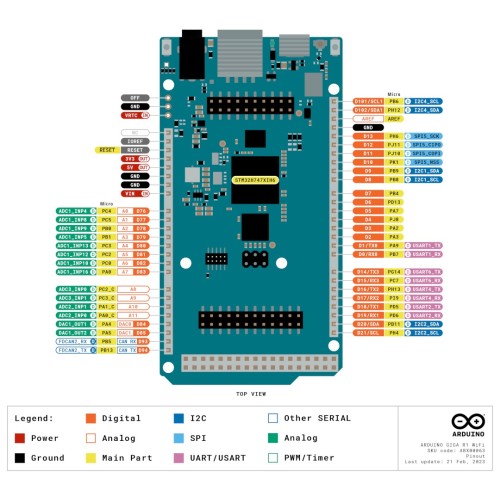

  • Leads:
    • digital inputs/outputs: 75
    • analog pins: 12
    • DAC: 2 (DAC0 / DAC1)
    • PWM pins: 12
    • others: VRT and OFF
  • Interfaces:
    • UART: 4
    • I2C: 3
    • SPI: 2
    • CAN: yes (requires external transceiver)
  • Connectors:
    • camera: I2C + D54-D64
    • display: D1N, D0N, D1P, D0P, CKN, CKP + D68-D75
    • sound: DAC0, DAC1, A7
  • Power:
    • operating voltage: 3.3 V
    • input voltage (VIN): 6 V to 24 V
    • the current capacity of I / O pins: 8 mA
  • Timing:
    • Cortex M7: 480 MHz
    • Cortex M4: 240 MHz
  • Flash memory: 2 MB
  • RAM: 1 MB
  • Dimensions: 101 x 53 mm
