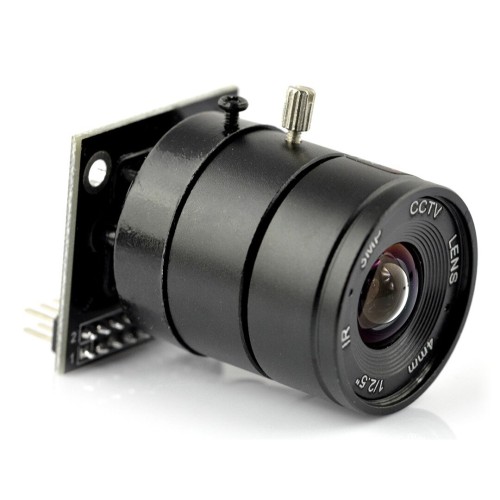

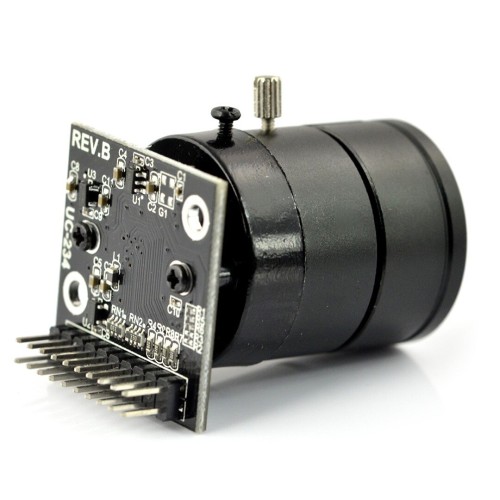

ArduCam OV5642 5MPx camera module + lens HQ CS-mount

Camera module with OV5642 matrix with a resolution of 5 MPx and the size of 1/4". Transfer rate in full resolution of 2592x1944px, is 15 fps. It is equipped with a CS-mount lens with the following parameters: 3 MP, 1:1.4, the focal length of 4.0 mm, format 1/2.5". The device operates with a voltage of 3.3 V, it communicates through a parallel interface.

Specification:

• Supply voltage: 3.3 V
• Matrix OV5642, CMOS, 5 MPx, 1/4"
• Built-in voltage regulator LDO
• Resolution: max. 2592x1944px (5 MPx)
• Speed (fps):
• 5 MPx (2592x1944): 15 fps
• 1080p (1920x1080): 30 fps
• 720p (1280x720): 60 fps
• VGA (640x480): 60 fps
• QVGA (320x240): 120 fps
• Output formats:
• YUV (422/420) / YCbCr422,
• RGB565/555/444,
• CCIR656,
• compressed 8-bit data
• 8/10-bit RAW RGB Data
• Lens 1:1,4:
• connector: CS-mount
• Focal length: 4 mm
• Type: CCTV, 3MP
• Format: 1/2,5"
