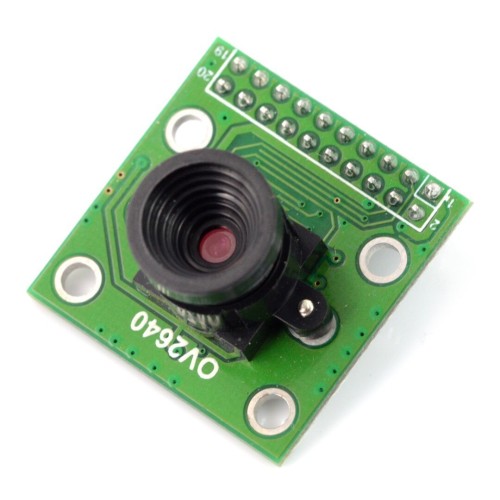

ArduCam OV2640 2MPx 1600x1200px 60fps camera module + lens LS-4011 M12x0.5

Brand: ArduCam
Product Code: AN-06837
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-09
21.78€ 27.40€
Ex Tax: 18.00€

Qty

Camera module with the matrix OV2640 2 MPx with a resolution of 1600x1200px and speeds up to 60 frames per second. It features lens LS-4011 M12x0.5, with the following parameters: focal length of 4.9 mm, angle of 60°, aperture of 1.2, the format of 1/4. The device operates with a voltage of 3.3 V and 5 V, it communicates through a parallel interface.

Specification:

  • Operating voltage: 1.7 V to 3.3 V
  • Matrix OV2640
  • Resolution: 1600x1200px (2 Mpx)
  • The number of frames per second:
    • up to 60 FRAMES per second for CIF format
    • up to 30 FRAMES per second for SVGA format
    • up to 15 FRAMES per second for the format SXGA / UXGA
  • Sensitivity: 0,6 V/(lux/s)

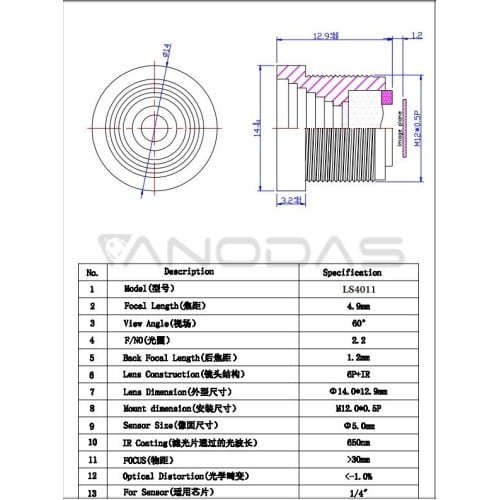

  • Lens: LS-4011
    • Focal length: 4.9 mm
    • Aperture: 1,2
    • Viewing angle: diagonal: 60°
    • Format: 1/4"
  • Output formats:
    • YUV 422/420 / YCbCr 422
    • RGB565/555
    • compressed 8-bit data
    • 8 / 10-bit RAW RGB Data
  • Configuration of the sensor through I2C bus
  • The viewing angles of the camera with the lens:
    • horizontal: 55°
    • vertical: 41°
    • diagonal: 69°
