ArduCam HM0360 VGA SPI camera for Raspberry Pi Pico - ArduCam B0319

• Ultra Low Power, high sensitivity, low noise VGA sensor
• Draws from 7.8 mA VGA 60 fps to 240 µA in standby mode
• Automatic camera wake-up and sleep with the programmable interruption - for reduced performance
• Built-in high precision oscillator, LDO, auto exposure/gain, ambient light sensor, and zone detection
• External frame synchronization and stereo camera support
• Flexible binning
• 1-track MIPI CSI2 and 8-bit parallel / serial data format supporting 1-bit, 4-bit and 8-bit protocol
• I2C 2-wire serial interface with serial operation support for fast register access
• High CRA for low profile module design

• Sensor: HM0360
• Active resolution: 656x496px
• Pixel size: 3.6 x 3.6 µm
• Pixel technology: BSI
• Optical format: 1/6'' (diagonal 2.88 mm)
• Color Filter Chart: Bayer, monochrome
• The frame rate at 24 MHz: QQVGA 1 fps to VGA 60 fps
• Readout modes: Full (VGA), Bin2 (Mono) / Sub2, Bin4 (Mono) / Sub4, Fast ROI
• S/N Ratio: 45.5 dB maximum
• Dynamic Range (1x): 85 dB
• Sensitivity: 5.5 V / Lux-s/530 nm, 15 V / (uW-cm-2s)/850 nm
• CRA: 35.74º maximum
• Supply voltage:
• analog: 2,8 V
• digital: 1.2 V (optional 1.8 V LDO)
• I/O: 1.8 V to 3.0 V
• Reference Clock (EXTCLK): 6 MHz to 24 MHz
• Built-in internal oscillator
• Serial interface: I2C
• Module dimensions with the camera: 33.12 x 23.05 mm
• Mounting hole spacing: 28.56 x 20.74 mm

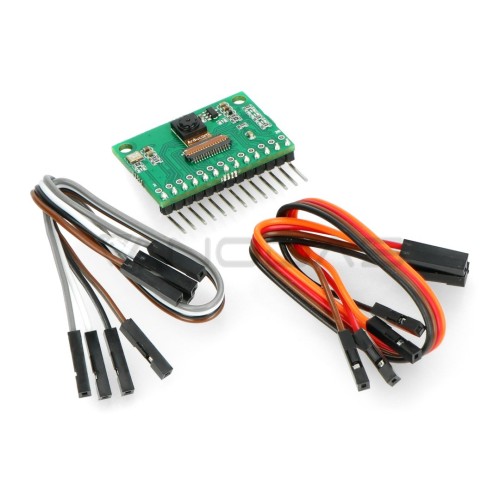

• ArduCam HM0360 VGA SPI camera - for Raspberry Pi Pico - ArduCam B0319
• Female to female connecting cables - 8 pieces
