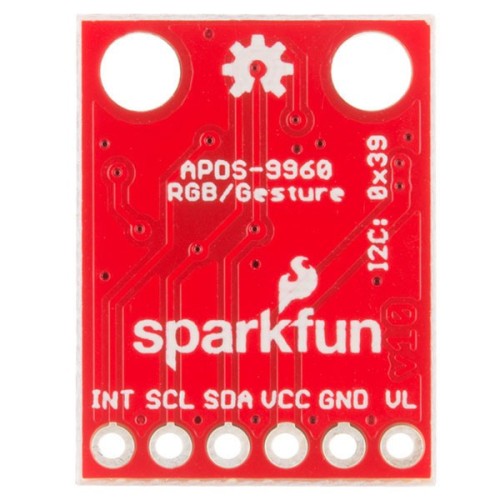

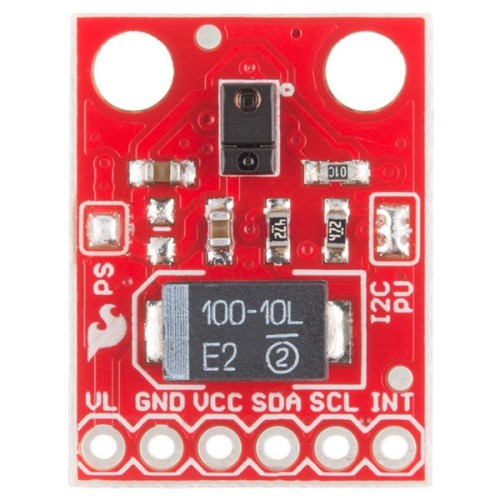

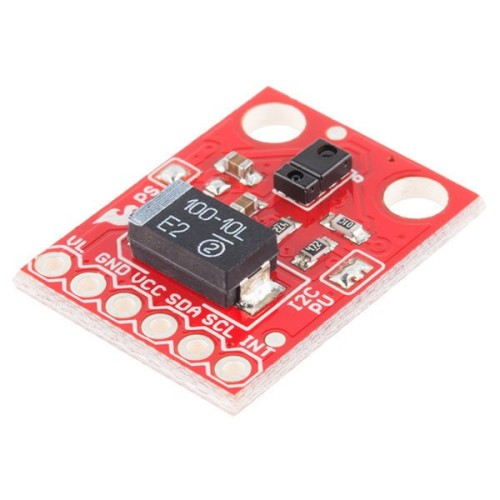

APDS-9960 RGB sensor and 3.3V I2C gesture detector - SparkFun SEN-12787

Brand: Sparkfun
Product Code: AN-03065
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
32.90€
Ex Tax: 27.19€

Qty

Module with a sensor that measures the light intensity of the environment, enables the detection of proximity of an object and recognizes hand gestures. With this sensor, you can control the device by waving. The system operates with a voltage of 3.3 V and communicates over I2C.

Specification:

  • Supply voltage: from 2.4 V to 3.6 V
  • Measuring range: from 10 to 20 cm
  • Communication: I2C bus (address: 0x39)
  • Connectors: holes for goldpin straps - 2.54 mm pitch (not included in a package, sold separately)
  • Two mounting holes with a diameter of 3 mm
  • Module dimensions: 21 x 16 mm
