Antenna Splitter: SUMATOR TV

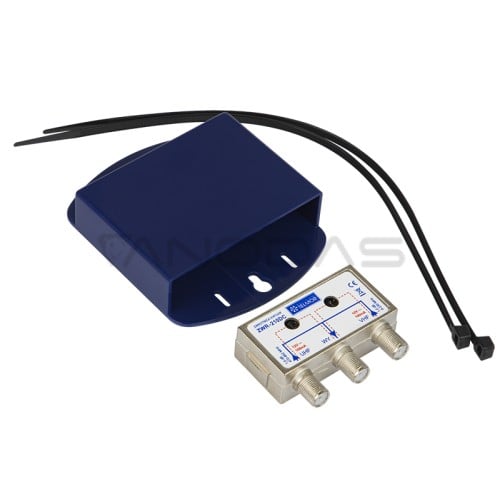

ZWR-210DC is an antenna diplexer with two inputs: VHF and UHF and one output. The device is used to sum up signals from VHF and UHF TV antennas.

The crossover ensures the transfer of the supply voltage from the input to the VHF and UHF outputs, enabling powering of the antenna preamplifiers. To do this, in the appropriate pin strip, accessible through one of the holes in the housing, move the jumper to the horizontal position. In the case of cooperation of the diplexer with passive antennas, the jumpers should remain in the vertical position.

The most important information:

• Complete with splash-proof ABS housing
• Simple assembly and connection
• Very solid mechanical construction
• Operating band and frequency: FM/VHF: 5-230MHz, UHF: 470-790MHz
• Transferring the supply voltage independently to each of the antenna inputs and the ability to turn it off
• Possibility of mounting on an antenna mast after placing it in a splash-proof housing

Specification:

• Working band: FM/VHF/UHF

• Operating frequency range MHz: 5-230 MHz (FM/VHF) 470-862 MHz (UHF)

• Number of inputs: 1 VHF, 1 UHF

• Number of outputs: 1

• DC Passes: Yes

• Possibility to disable DC pass: Yes

• Product dimensions: 60x58x19 mm

• Mast housing dimensions: 85x105x26 mm
