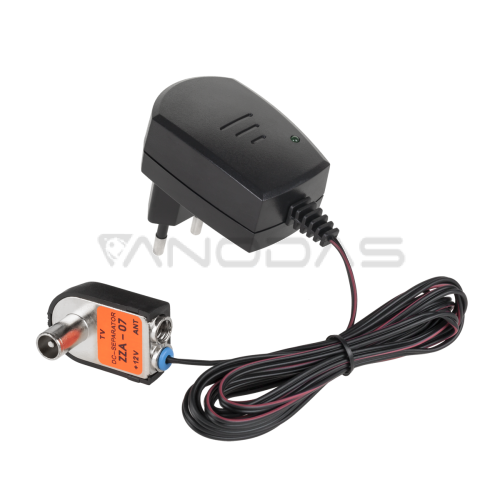

Antenna power supply for antennas ZZA-7 Telmor
Brand: Telkom Telmor
Product Code: URZ3350
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-01-31
Product Code: URZ3350
Availability: 4-6 business days
Planuojama gavimo data po užsakymo: 2025-01-31
Ex Tax: 17.60€

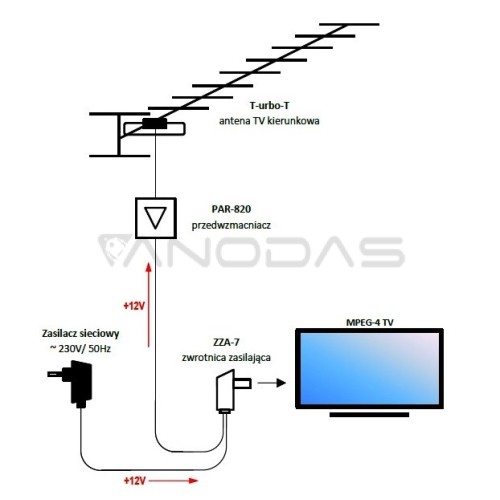

ZZA-7 is an antenna power supply with a diplexer (separator) used to remotely supply DC power to an antenna preamplifier or subscriber micro amplifier. The power supply is via a coaxial cable that feeds the signal from the TV antenna to the TV set.
----------
Characteristics
----------
• Operation in the frequency range 47.5-862 MHz
• Pass-through attenuation below 1.0 dB
• Power supply integrated with the crossover
• Operation signaling - LED diode
• Simple assembly and connection
----------
Technical data
----------
Operating frequency range: (FM/ VHF, UHF) 47.5-862 MHz
Through-put attenuation: <1.0 dB
Isolation (RF path / power path): >20 dB
Input/output impedance: 75/75 ohms
Power supply: ~230V / 50Hz
PSU output voltage: +12 V
The maximum load current of the power supply: 100 mA
Crossover integrated power supply: yes
Net weight: 0.1 kg with power adapter
Packaging: blister
----------
Characteristics
----------
• Operation in the frequency range 47.5-862 MHz
• Pass-through attenuation below 1.0 dB
• Power supply integrated with the crossover
• Operation signaling - LED diode
• Simple assembly and connection
----------
Technical data
----------
Operating frequency range: (FM/ VHF, UHF) 47.5-862 MHz
Through-put attenuation: <1.0 dB
Isolation (RF path / power path): >20 dB
Input/output impedance: 75/75 ohms
Power supply: ~230V / 50Hz
PSU output voltage: +12 V
The maximum load current of the power supply: 100 mA
Crossover integrated power supply: yes
Net weight: 0.1 kg with power adapter
Packaging: blister
