AltIMU-10 v5 Gyro Accelerometer Compass and Altimeter (LSM6DS33 LIS3MDL and LPS25H Carrier) 2.5V – 5.5V I²C 5mA

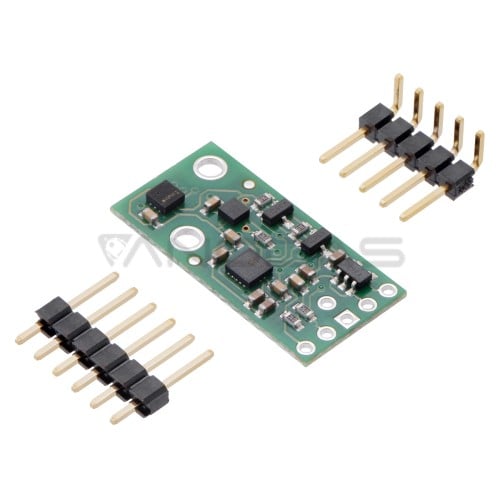

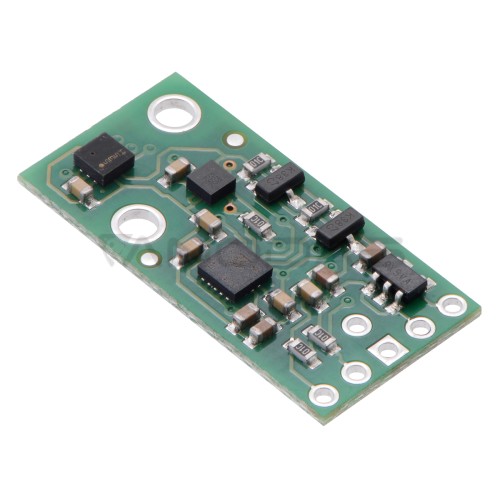

The Pololu AltIMU-10 v5 is an inertial measurement unit (IMU) and altimeter that features the same LSM6DS33 gyro and accelerometer and LIS3MDL magnetometer as the MinIMU-9 v5, and adds an LPS25H digital barometer. An I²C interface accesses ten independent pressure, rotation, acceleration, and magnetic measurements that can be used to calculate the sensor’s altitude and absolute orientation. The board operates from 2.5 to 5.5 V and has a 0.1″ pin spacing.

Specifications:

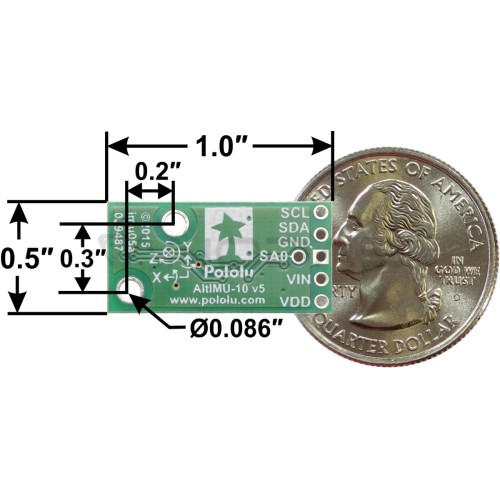

Size: 1.0″ × 0.5″ × 0.1″1
Weight: 0.8 g1

Interface: I²C
Minimum operating voltage: 2.5 V
Maximum operating voltage: 5.5 V
Axes: pitch (x), roll (y), and yaw (z)
Measurement range:

• ±125, ±245, ±500, ±1000, or ±2000°/s (gyro)
• ±2, ±4, ±8, or ±16 g (accelerometer)
• ±4, ±8, ±12, or ±16 gauss (magnetometer)
• 26 kPa to 126 kPa (barometer)

Supply current: 5 mA

Documents:

LIS3MDL Datasheet

LSM6DS33 Datasheet

LPS25H DataSheet

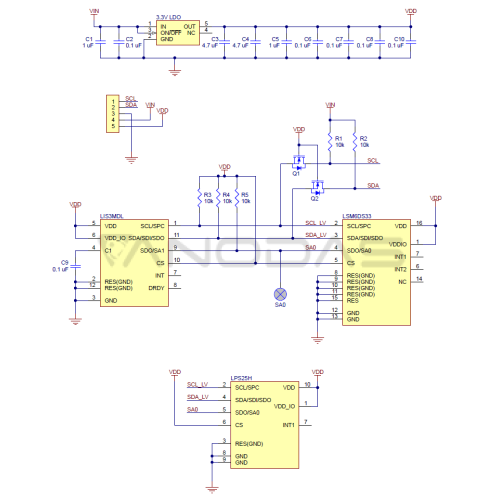

AltIMU-10 v5 schematic diagram

LSM6 Arduino library

LIS3MDL Arduino library

LPS Arduino library
