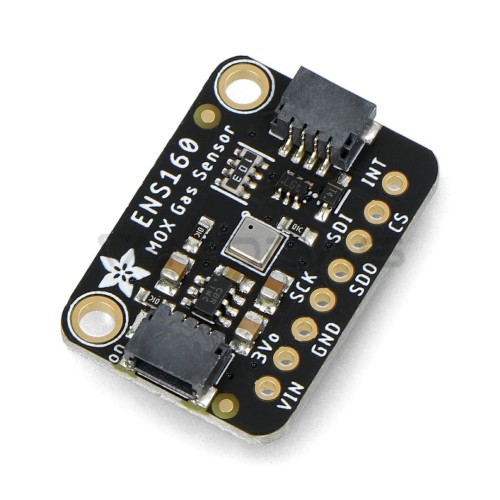

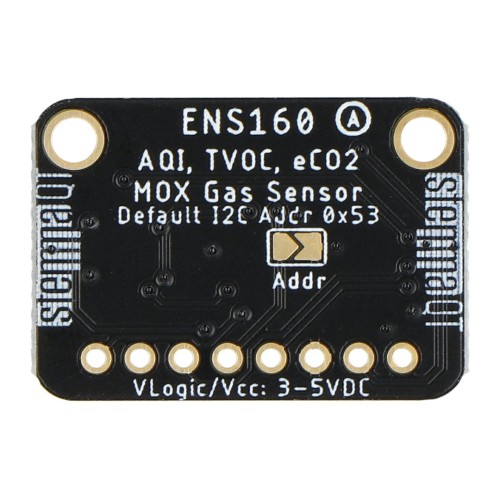

Air quality sensor ENS160 MOX - STEMMA QT/Qwiic - Adafruit 5606

Brand: Adafruit
Product Code: AN-22195
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
37.50€
Ex Tax: 30.99€

Qty

Adafruit module based on the ENS160 MOX system, which is used to monitor indoor air purity. It processes IAQ (Indoor Air Quality) data such as TVOC, eCO2, AQI - it is a combination of TrueVOC and MOX technologies that allow you to obtain interference-free measurements. Accurate data reading is possible thanks to the use of high-quality systems. The eCO2 measurement range is from 400 ppm to 65,000 ppm and the TVOC range is from 0 ppb to 65,000 ppb. The sensor is supplied with a voltage in the range of 3 V to 5 V.

Main features:
  • Allows the detection of reducing gases - volatile organic compounds (VOCs) and oxidizing gases
  • Supports up to 4 independent MOX gas sensors
  • Includes integrated, pre-calibrated algorithms for sensor fusion and automatic baseline correction
  • The warm-up time is less than 3 minutes, which allows for quick data reading
  • Reading environmental data: TVOC, eCO2, AQI
Specification:
  • Type: air quality sensor/air purity sensor
  • Built-in chip: ENS160
  • Supply voltage: 3.3 V to 5.5 V
  • Communication interface: I2C / SPI bus
  • I2C address: 0x53
  • eCO2 measurement range: 400 ppm to 65,000 ppm
  • TVOC measurement range: 0 ppb to 65000 ppb
  • Module dimensions: 25.4 x 17.6 x 4.5 mm
Set includes:
  • Air quality sensor ENS160 MOX - STEMMA QT/Qwiic - 1 piece
  • Goldpin strip 1x8 pin - raster 2.54 mm - 1 piece
