Air Quality Kit - PM2.5 air quality measurement kit - M5Stack Core + PMSA003 + SHT30 developer module - M5Stack K023-B
Brand: M5Stack
Product Code: AN-22514
Availability: 4-6 business days
Planned delivery date after ordering: 2024-10-25
Product Code: AN-22514
Availability: 4-6 business days
Planned delivery date after ordering: 2024-10-25
Ex Tax: 84.21€
The Air Quality Kit includes the M5Stack Basic development module, the PMSA003 air quality sensor equipped with an additional SHT30 temperature and humidity sensor, and the BTC station. The whole thing allows for accurate measurement of the concentration of PM2.5 particles in the current environment, it also allows you to determine the ambient temperature and the level of prevailing humidity. The universal design allows for versatile prototyping and both industrial and hobby use.
Main features:
- Precise measurement by laser scattering
- UART communication interface and digital input
- Real-time response
- Continuous data acquisition
- Detection of particles with a minimum diameter of 0.3 µm
- Damage-resistant, 6-layer sensor cover
- Compact dimensions, perfect for a mobile device
Specification:
- Development module: M5Stack Basic
- Sensor type: air quality
- Built-in chip: PMSA003
- Minimum diameter of detected particles: 0.3 µm
- Particulate mass concentration resolution: 1 μg/m3
- Particle measurement range: 0.3 μm to 1.0 μm; from 1.0 μm to 2.5 μm; from 2.5 μm to 10 μm
- Sensor type: temperature and humidity
- Built-in chip: SHT30
- Temperature measurement range: -10 °C to 80 °C
- Measurement accuracy: +/- 0.5 °C
- Humidity measuring range: 0% to 100% RH
- Measurement Accuracy: +/- 5% RH
- Supply voltage: 5 V
- Dimensions: 63 x 52 x 46 mm
- Weight: 70 g

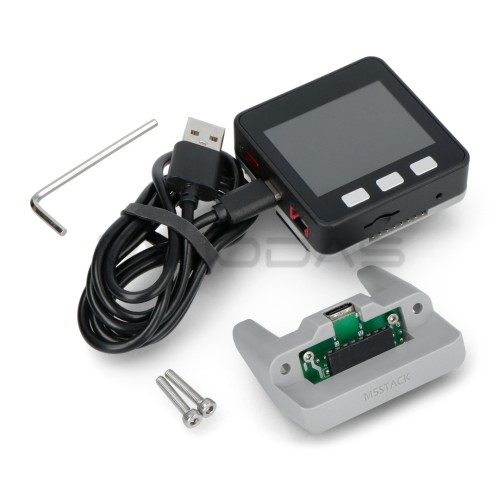

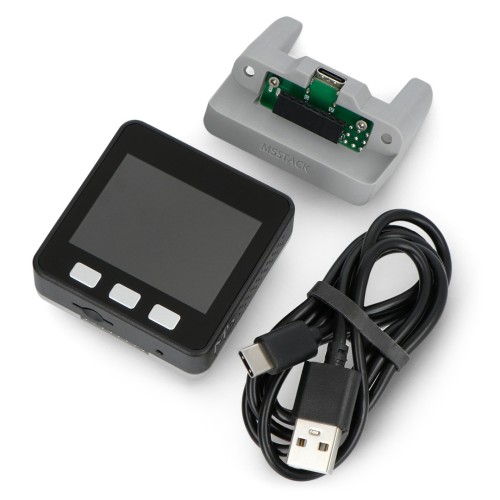

Set includes:
- M5Stack Basic development module
- PMSA003 PM2.5 air quality sensor module
- SHT30 sensor module
- Bitcoin station
- USB type C cable
- Mounting screw M3 - 2 pcs
- Allen key
Tags: air, quality, kit, pm2.5, measurement, m5stack, core, pmsa003, sht30, developer, module, k023-b, controller, and, accessories
