Adjustable Distance Sensor E3F-DS30P2 10-30 cm - PNP NO

Product Code: ABC-12169
Availability: Vilnius Store Out of Stock
Kaunas Store In Stock
Central Warehouse Out of Stock
8.90€
Ex Tax: 7.36€

Qty

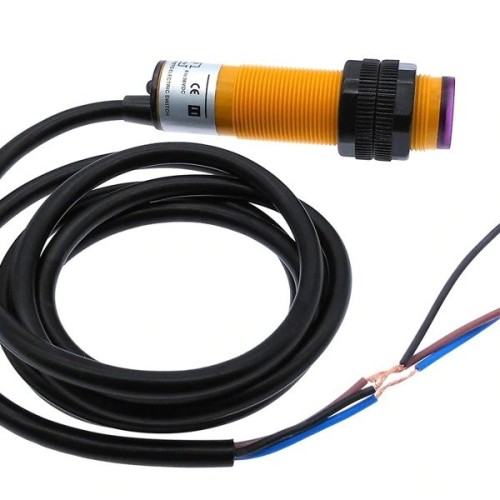

The E3F-DS30P2 distance sensor has a 125 cm long cable and nuts that facilitate installation. When an object is detected, a low state appears at the - 0 V output. The distance in the range of 10 to 30 cm can be adjusted with the knob on the back of the sensor. When nothing is closer than the set value, the sensor sends a high state - 5 V.

Specification:

  • Voltage: 6 - 36 V
  • Current: 300 mA
  • Measuring range adjustable: 10-30 cm ± 10%
  • LED diode signaling the detection of the object
  • Transistor: PNP
  • Channel: NO
  • Response time: less than 2ms
  • Reverse polarity protection
  • Working temperature: -25 °C to 55 °C
  • Diameter: 18 mm
  • Sensor length: 70 mm
