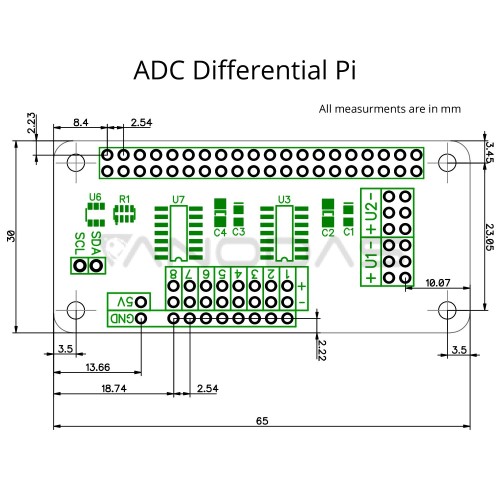

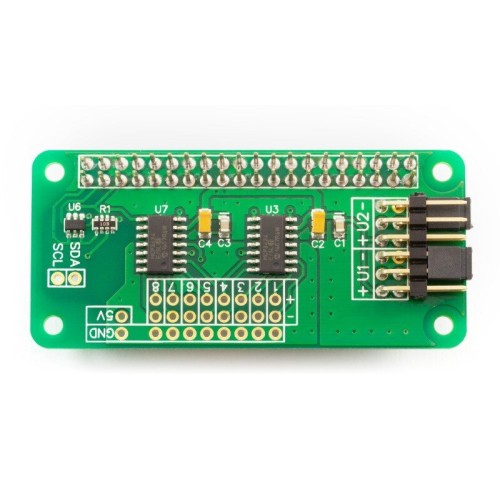

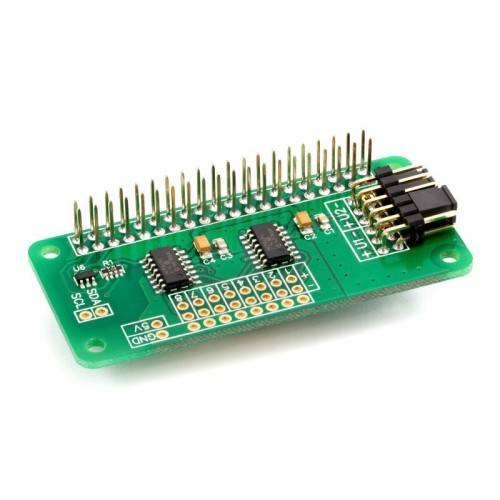

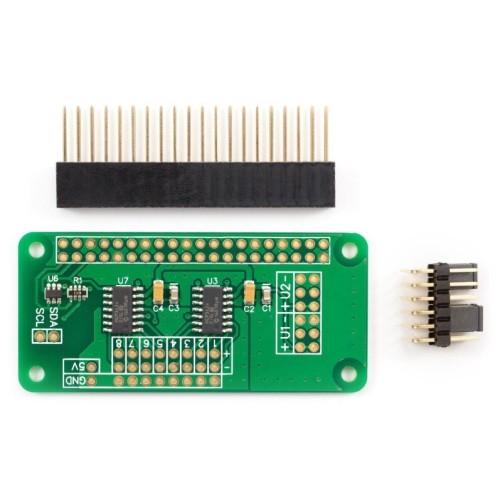

ADC Differential Pi - MCP3424 - 8-channel A / C

Brand: AB Electronics
Product Code: AN-11712
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
38.00€
Ex Tax: 31.41€

Qty

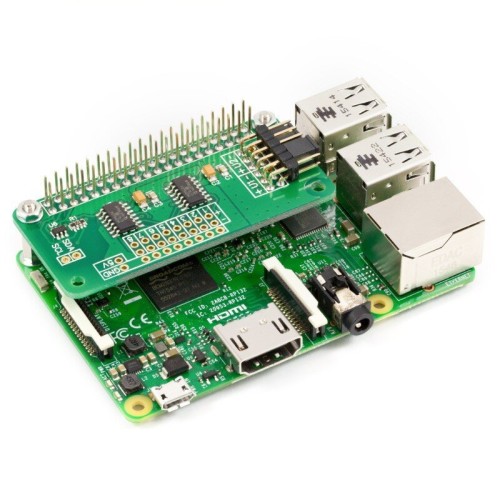

A module with a high precision A / C converter in the form of an overlay for the GPIO connectors of the Raspberry Pi. It has 8 channels of 18-bit analog outputs operating in the Differential mode with a voltage from - 2.048 V V to 2.048 V. It communicates via the SPI interface. Works with Raspberry version A + / B + / 2B / 3B / 3B + / Zero / Zero W.

Specification:

  • Supply voltage: 5 V
  • A/C converter input: from -2,048 V to 2,048 V
  • The maximum A/C input voltage: from Vss - 0.4 V to Vdd + 0.4 V
  • Current of individual inputs: 2 mA
  • I2C operating voltage: 5 V
  • The I2C port current: 100 mA
  • System: 2 x MCP3424
  • 8 differential 18-bit channels of A/C converter
  • Control via the I2C port
  • The possibility to connect up to 4 shields
  • Built-in reference voltage: 2,048 V
  • Built-in amplifier: 1x, 2x, 4x, 8x
  • Programmable data transfer rate:
  • 3, 75 SPS - 18-bit
  • 15 SPS - 16 bit
  • 60 SPS - 14 bit
  • 240 SPS - 12 bit
