Adafruit KB2040 Kee Boar Driver - board with RP2040 microcontroller - Adafruit 5302

Brand: Adafruit
Product Code: AN-20788
Availability: 4-6 business days
Planned delivery date after ordering: 2025-07-11
21.50€
Ex Tax: 17.77€

Qty

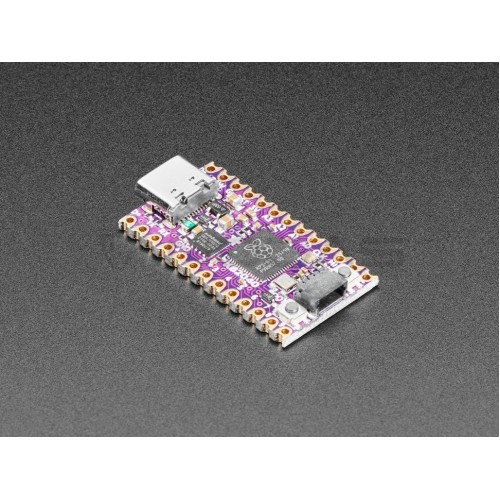

Adafruit Kee Boar Driver is a board based on the RP2040 microcontroller. The chip has two ARM Cortex M0+ cores running at up to 133 MHz, 264 kB of RAM (no EEPROM) and an 8 MB SPI FLASH chip for storing CircuitPython / MicroPython files and code. Additionally, it allows external memory up to 16 MB to be connected via a dedicated QSPI bus. The small size board has 20 GPIO pins (Including two on the QT port), a STEMMA QT connector, and a USB Type C socket.

Main features:

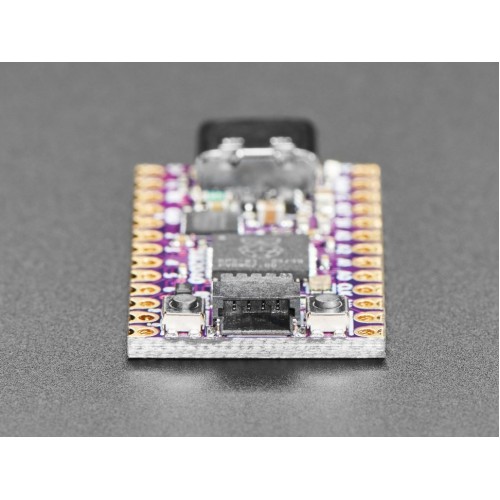

  • Reset and Bootloader buttons to quickly reboot the board. The bootloader button is also available as a generic GPIO input button
  • STEMMA QT connector is compatible with SparkFun Qwiic I2C connector and can be used to connect and play I2C devices or as 2 additional GPIO pins
  • Built-in 3.3 V voltage regulator (peak current - 500 mA)
  • Green LED informing about the module power supply
  • Compatible with NeoPixel

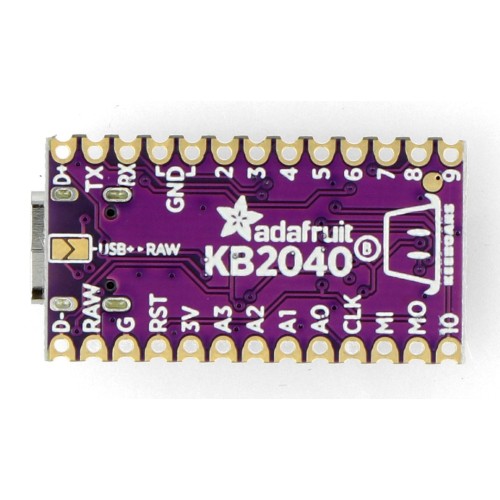

  • RAW output for supplying NeoPixels or other 5 V devices. Jumper at the bottom to bypass the 500 mA fuse (up to 2 A from USB)
  • USB type C connector allows access to built-in USB ROM bootloader and serial port debugging
  • Additional D- and D+ pinouts for alternative USB connections
Specification:
  • Processor: Dual ARM Cortex-M0+ / 133 MHz
  • 264 kB SRAM
  • Support for up to 16 MB of external Flash memory via dedicated QSPI bus
  • DMA controller
  • Fully interconnected AHB crossbar
  • Peripherals with interpolator and integer divider
  • Programmable LDO on-chip for core voltage generation
  • 2 on-chip PLLs for USB and core clock generation
  • 30 GPIO pins, 4 of which can be used as analog inputs
  • Communications:
    • 2 x UART
    • 2 SPI controllers
    • 2 I2C controllers
    • 16 PWM channels
    • USB 1.1 and PHY controller, with host and device support
  • Dimensions: 35.0 x 17.8 x 4.9 mm
  • Weight: 2.8 g

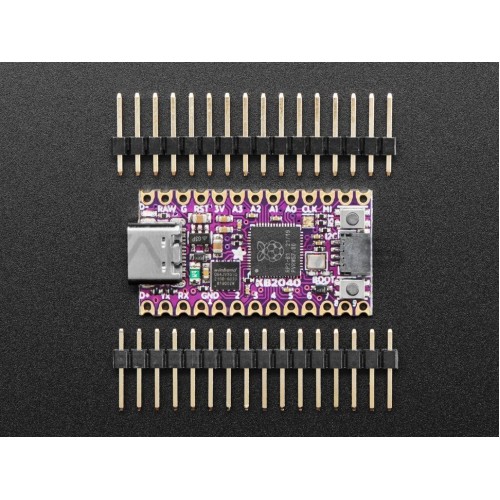

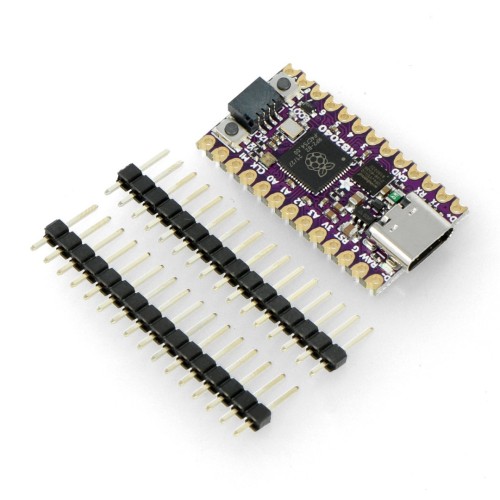

Set includes:
  • Adafruit KB2040 Kee Boar Driver - 1 pcs
  • Goldpin strip for self-soldering - 2 pcs
