ADAFRUIT ALS-PT19 ANALOG LIGHT SENSOR BREAKOUT

Brand: Adafruit
Product Code: AN-05298
Availability: 4-6 business days
Planned delivery date after ordering: 2025-04-15
5.30€
Ex Tax: 4.38€

Qty

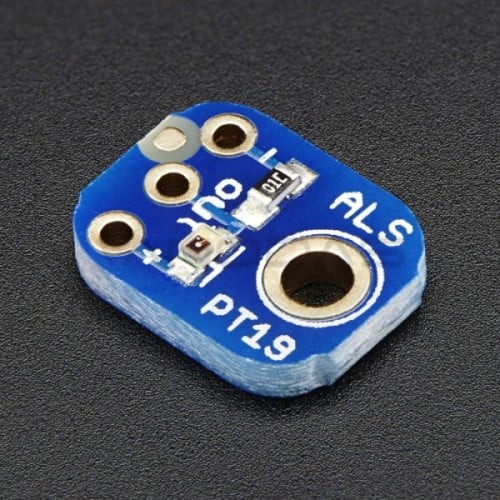

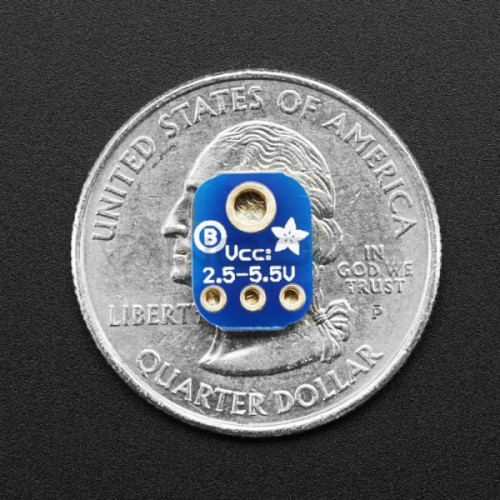

Adafruit manufacturer's ALS PT19 daylight sensor module. Small and extremely light - weighs only 0.2g. The output signal is analog, changes the voltage according to the light intensity, the higher the illumination, the higher the output voltage.

Technical data:
● Supply and logic signal voltage: 2.5-5V DC
● Output signal type: analog

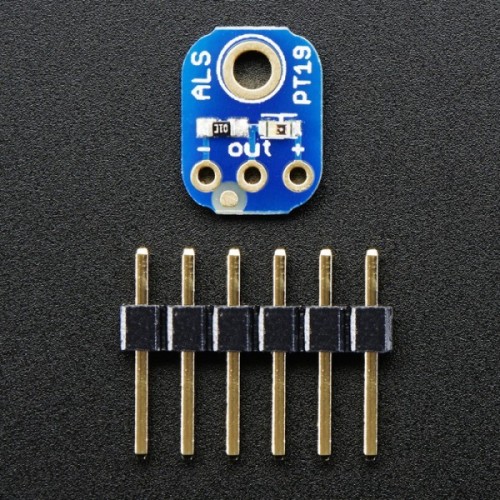

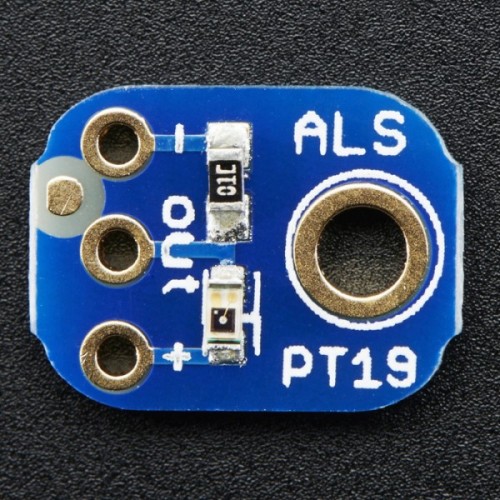

● Terminal layout: OUT - for signal, minus - for ground, + - supply voltage
● RoHS compliant
● Dimensions: 7.8 x 10.6 x 2.4 mm
● Weight: 0.2g

Links and customization:
● LED strip brightness control
● Home lighting automation
User's Guide
