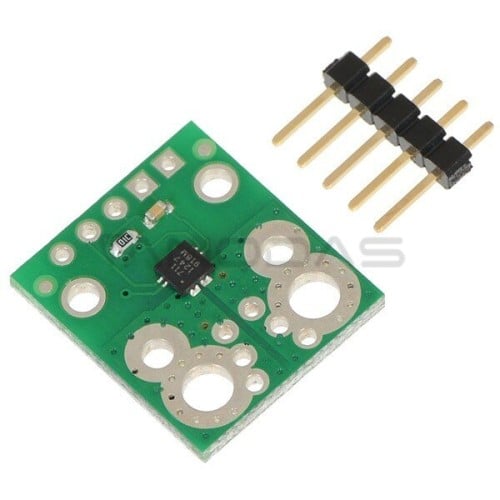

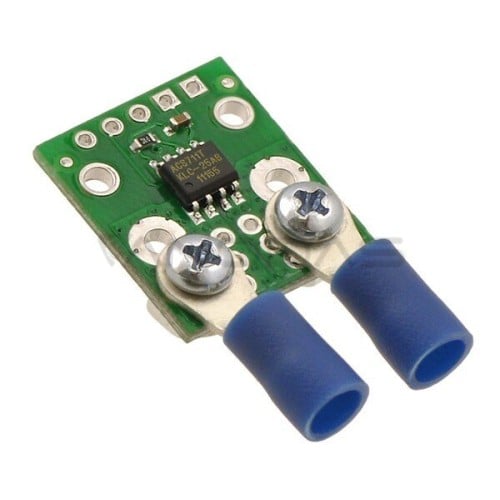

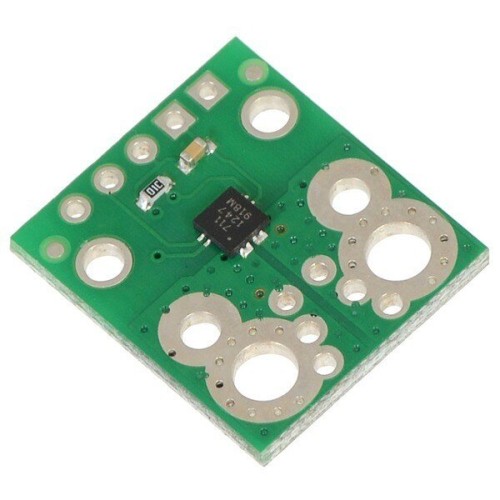

ACS711EX current sensor, -15A to 15A, Pololu 2452

Brand: Pololu
Product Code: AN-01690
Availability: 4-6 business days
Planned delivery date after ordering: 2025-05-06
5.90€
Ex Tax: 4.88€

Qty

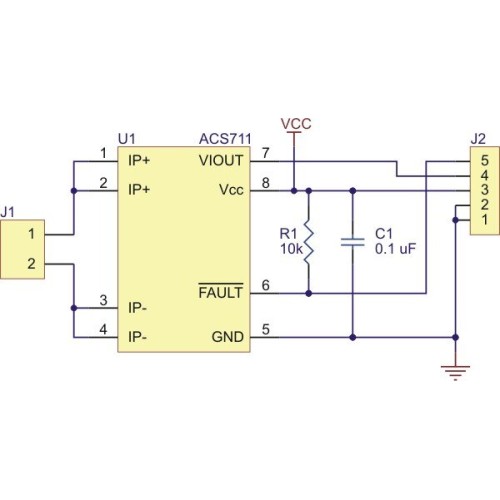

Current sensor working in the range of +/- 15 A, based on the Hall effect. The output is an analog voltage. The supply voltage is from 3 V to 5.5 V.

Main features:

  • The system is designed for current flowing in both directions (from -15A to 15A)
  • The module withstands the current surges of up to 100 A for 100 ms
  • Due to the low resistance of the system (0.6 mΩ) and channeling, the power losses are very small
  • Through the use of the Hall effect, the current paths are isolated from the logic part
  • The bandwidth is 100 kHz

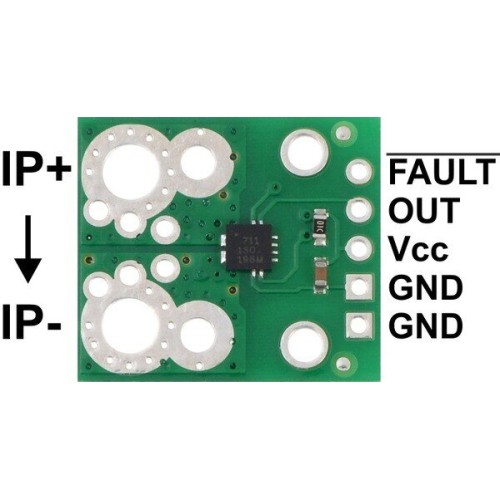

  • The FAULT pin which informs about exceeding the range of 15 A
  • Operating temperature: -40 °C to 125 °C

Specification:

  • Supply voltage of the logic part: 3.0 V to 5.5 V
  • Measuring range: from 15 A to 15 A
  • Current consumption of the logic part: 4 mA
  • Sensitivity for power supply of 3.3 V: 0,090 V/A
  • Bandwidth: 100 kHz
  • Operating temperature: -40 °C to 125 °C
  • Module weight: 1 g (without connectors)

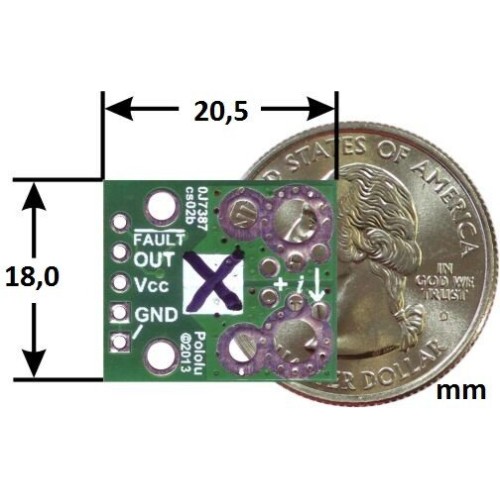

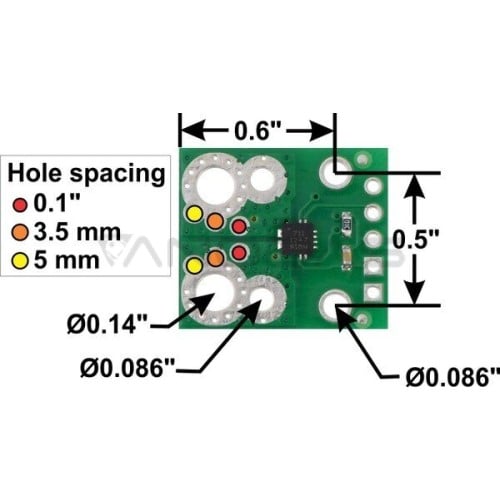

  • Dimensions: 18 x 20.5 mm
