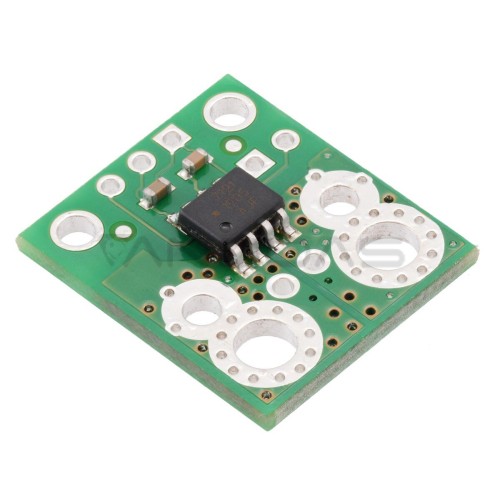

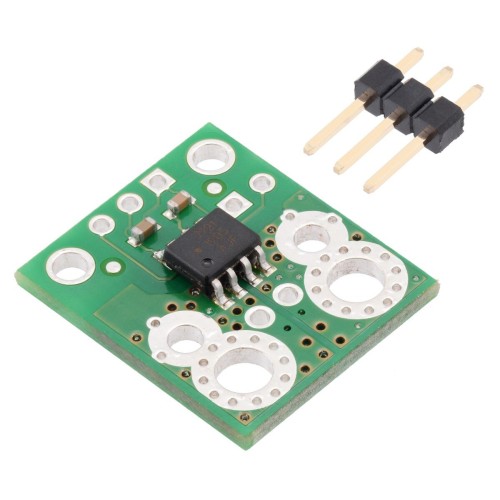

ACHS-7121 Current Sensor Carrier, -10A to 10A, Pololu 4030

Current sensor operating in the range from -10 to 10 A based on the Hall effect. The input voltage from 4.5 V to 5.5 V. The sensor is designed to use in systems of 5 V.

Main features:

• The system was designed for the current flowing in both directions (from -10 to 10 A)
• A small loss of power
• the low resistance of the conductive path (0,7 mΩ)
• the PCB is made of copper with a thickness of 70 µm

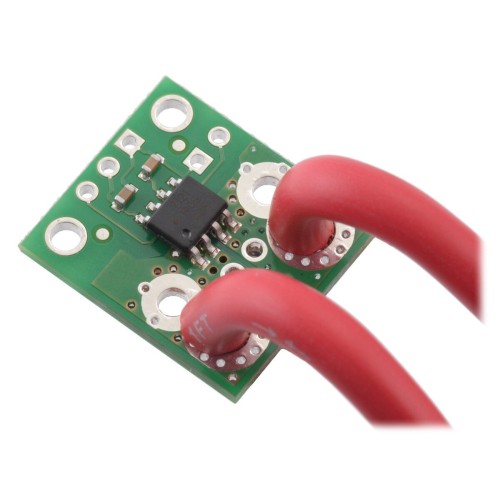

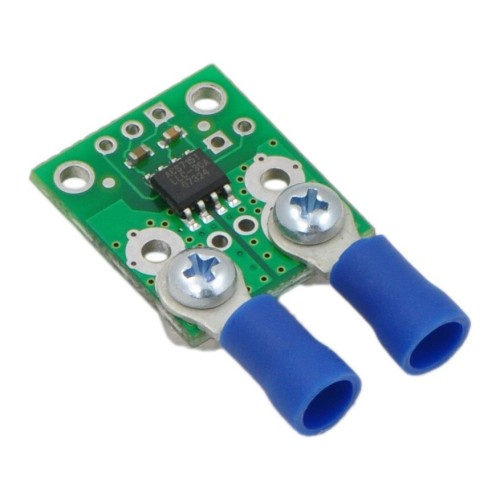

• The possibility to install anywhere
• Work in a wide temperature range from -40 °C to 110 °C
• Accuracy at room temperature: 1,5%

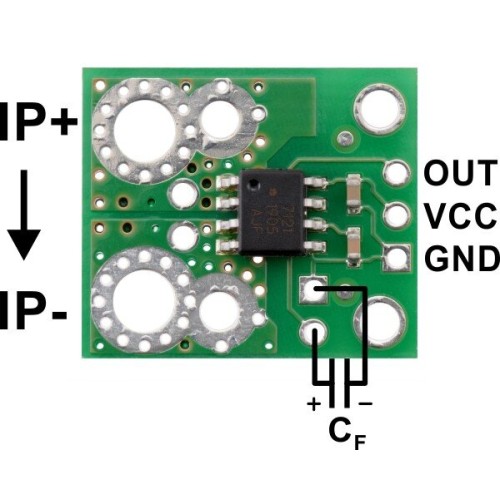

• The bandwidth of up to 80 kHz (reduction by using the appropriate capacitor)


Specification:

• Supply voltage: 4.5 V to 5.5 V
• Suitable to use in 5 V systems
• Sensitivity of power supply: 0,185 V/A
• Supply current: 15 mA

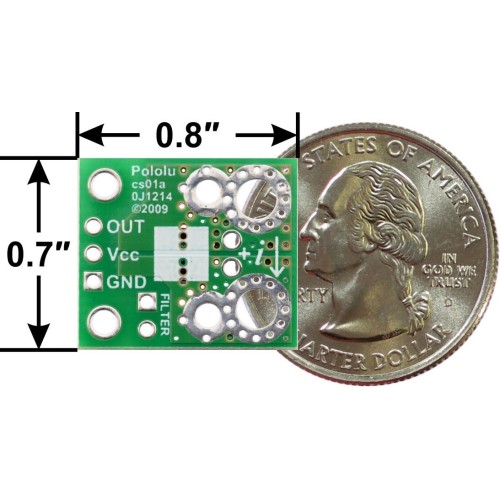

• Dimensions: 17,8 x 20,3 mm


Useful links:
Manufacturer website
