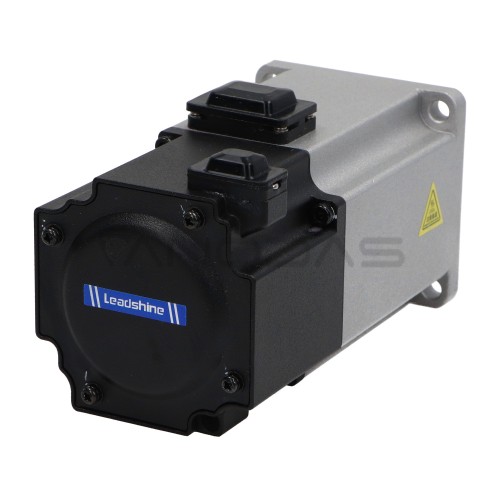

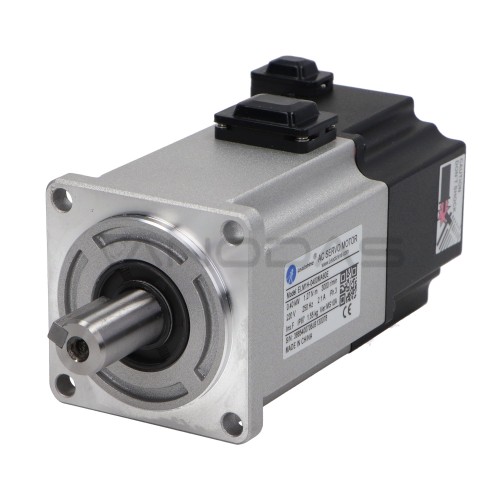

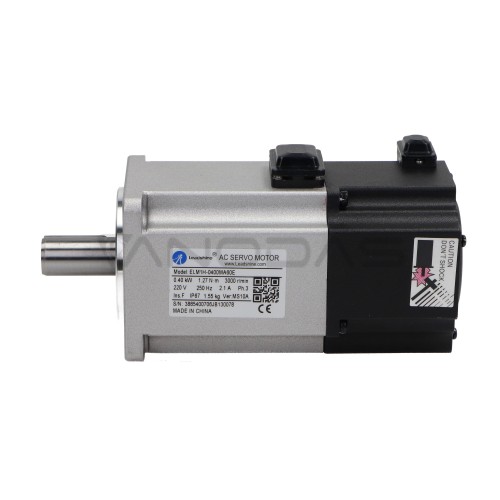

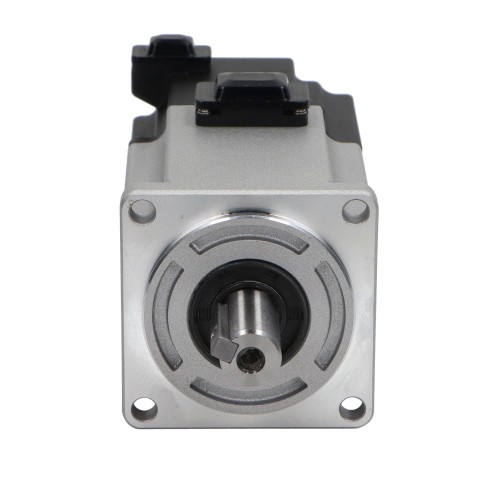

AC Servo Motor Leadshine ELM1H-0400MA60E - 400W, 1.27 Nm, 3000rpm, 23-bit absolute magnetic, brake

Brand: Leadshine Technology
Product Code: MX-IW-ELM1H-0400MA60E
Availability: Temporarily Out Of Stock
317.10€
Ex Tax: 262.07€

The Leadshine ELM1H-0400MA60E AC servo motor with a 400 W brake is an ideal solution for controlling devices that require fast and accurate movement. The rated speed of 3000 rpm and torque of 1.27 Nm determine its wide application in the industry, where speed and accuracy are decisive values. It is also worth noting that this servo motor uses a 23-bit magnetic encoder , which guarantees excellent accuracy in position tracking. Thanks to this encoder, the ELM1H-0400MA60E is ideal for applications where precise positioning is required.


Size [mm]: Nema24 (60x60)
Rated current [A]: 2.1
Nominal voltage [V]: 220
Nominal speed [rpm]: 3000
Peak speed [rpm]: 5000
Brake: Yes
Power [W]: 400
Rated torque [Nm]: 1.27
Peak Torque [Nm]: 3.81
Peak current [A]: 6.5
Encoder Resolution: 23-bit
Encoder type: magnetic
